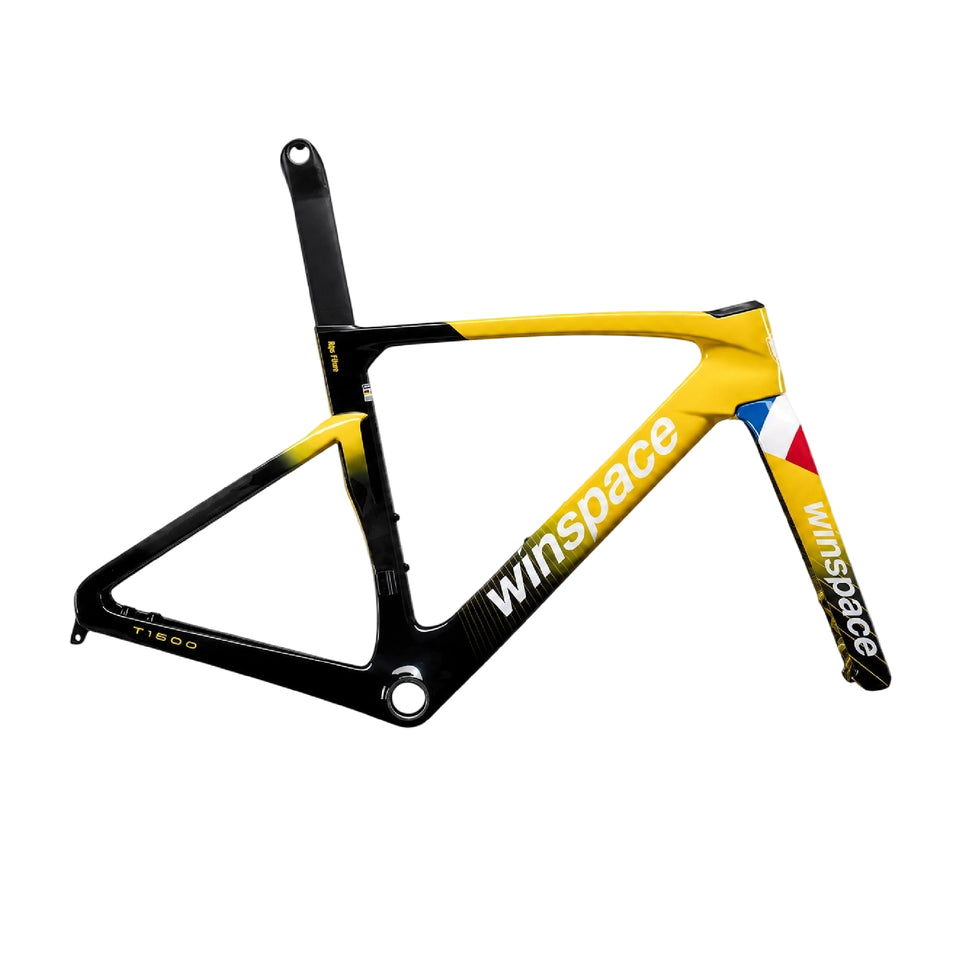

Winspace
A road frameset in 5 sizes, from XS to XL.
Frameset price, size M
$3,288
aggressive · neutral handling
From Winspace’s own numbers for the M, not marketing copy.
aggressive · neutral handling
From your saved height and inseam, not a height range.
Every size, straight from Winspace’s chart. Blanks are numbers Winspace doesn’t publish; we don’t fill them in.
| Measurement | |||||
|---|---|---|---|---|---|
| Stack (mm) | 498 | 510 | 524 | 544 | 565 |
| Reach (mm) | 365 | 372 | 382 | 392 | 407 |
| Stack / Reach | 1.36 | 1.37 | 1.37 | 1.39 | 1.39 |
| Head tube angle (°) | 70.7 | 71.5 | 72 | 72.5 | 72.9 |
| Seat tube angle (effective) (°) | 74.8 | 74.3 | 74 | 73.8 | 73.4 |
| Top tube (effective) (mm) | 500 | 515 | 532 | 550 | 575 |
| Chainstay (mm) | 406 | 406 | 406 | 406 | 406 |
| Wheelbase (mm) | 967 | 971 | 975 | 987 | 1004 |
| Trail (mm) | Not published | Not published | Not published | Not published | Not published |
| Standover (mm) | 731 | 757 | 773 | 803 | 832 |
Winspace’s geometry chart, read Jul 21, 2026.
| Size | Frameset weight(g) | Price(CAD) |
|---|---|---|
| XS | 1410 | $3,288 |
| S | 1410 | $3,288 |
| M | 1410 | $3,288 |
| L | 1410 | $3,288 |
| XL | 1410 | $3,288 |
Winspace hasn’t published frame bolt torques we can point to yet
