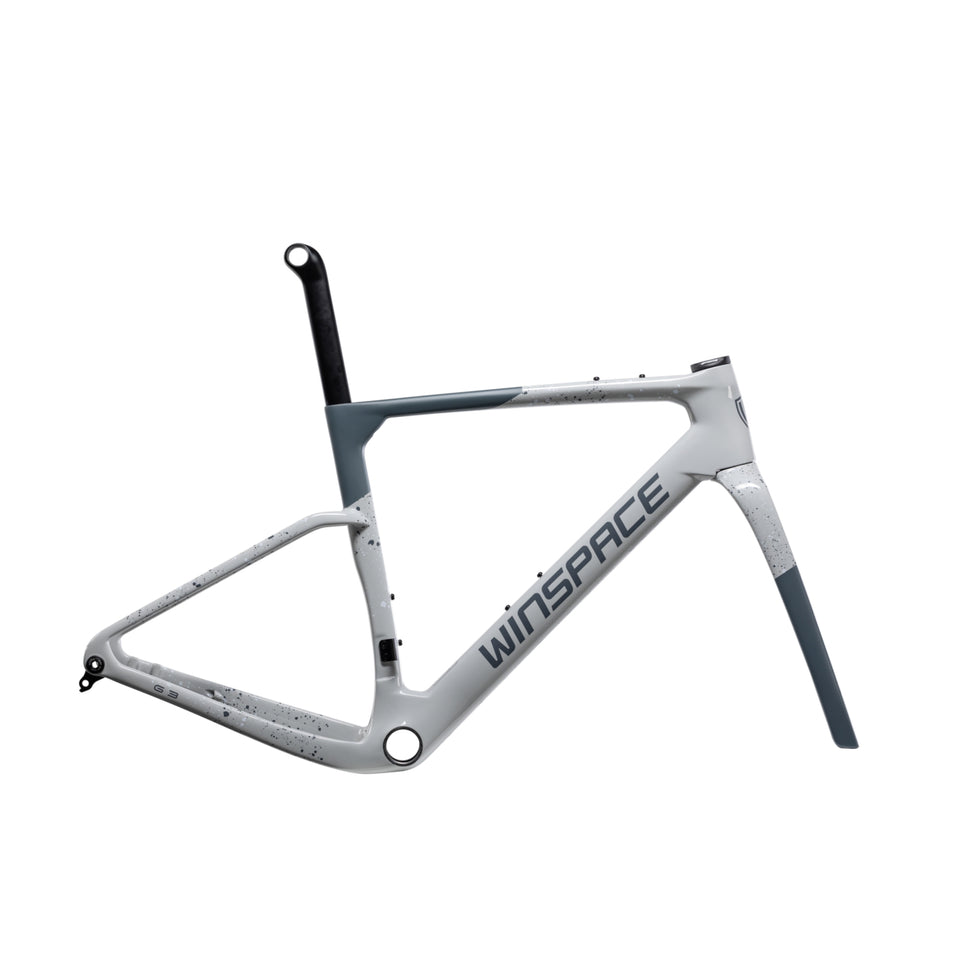

G3 Gravel2025
Winspace · Gravel · 5 sizes
$2,124
Kit weight not published
https://winspace.cc/products/g3-gravel
Frameset by size
Kit weight and list price per size. Gaps stay blank.
Retailer prices · size M
Best in-stock in CAD. Affiliate links may earn a commission.
| Retailer | Price | Stock | Link |
|---|---|---|---|
| Survey list (CAD) | US$1,550.00≈ $2,124 CAD | In stock | Buy |
Gravel
Geometry by size
Tap + Compare under each size to queue several of this bike.
XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 539 mm | 551 mm | 568 mm | 582 mm | 601 mm |
| Reach | 363 mm | 370 mm | 377 mm | 388 mm | 399 mm |
| Stack / Reach | 1.49 | 1.49 | 1.51 | 1.50 | 1.51 |
| Head tube angle | 69.5° | 70° | 70.5° | 70.5° | 70.5° |
| Seat tube angle (effective) | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Seat tube angle (actual) | — | — | — | — | — |
| Top tube (effective) | 523 mm | 533 mm | 545 mm | 560 mm | 577 mm |
| Head tube length | 120 mm | 130 mm | 145 mm | 160 mm | 180 mm |
| Seat tube length | 440 mm | 460 mm | 480 mm | 510 mm | 540 mm |
| Bottom bracket drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Bottom bracket height | 286 mm | 286 mm | 286 mm | 286 mm | 286 mm |
| Chainstay | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Front center | 599.3 mm | 605.3 mm | 610.2 mm | 626.1 mm | 644 mm |
| Wheelbase | 1018 mm | 1024 mm | 1029 mm | 1045 mm | 1063 mm |
| Fork rake (offset) | 54 mm | 54 mm | 51 mm | 51 mm | 51 mm |
| Fork axle to crown | 395 mm | 395 mm | 395 mm | 395 mm | 395 mm |
| Trail | — | — | — | — | — |
| Standover | 756 mm | 773 mm | 790 mm | 815 mm | 838 mm |
| Pad / effective stack | — | — | — | — | — |
| Pad / effective reach | — | — | — | — | — |
Frame torque
No manufacturer-published frame torque chart is on file for this Winspace yet. Use the component torque guide for Shimano / SRAM fasteners, and follow printed specs on the frame and parts.
