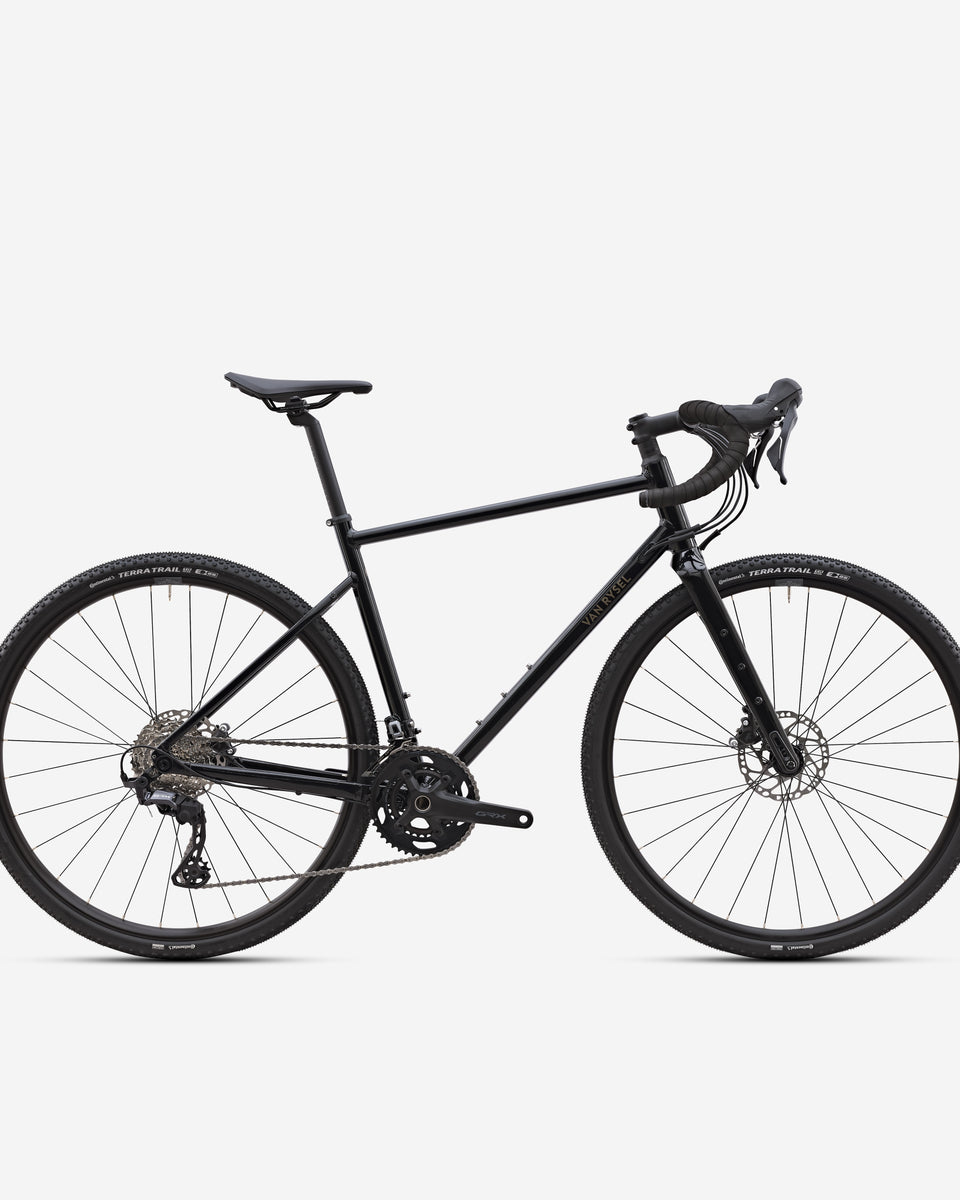

GRVL AF II2025
Van Rysel · Gravel · 5 sizes
Price not published
Kit weight not published
https://vanryselus.com/products/grvl-af-grx-2x12
Frameset by size
Kit weight and list price per size. Gaps stay blank.
Retailer prices · size M
Best in-stock in CAD. Affiliate links may earn a commission.
No retailer offers yet. Nightly feed jobs will populate prices.
Gravel
Geometry by size
Tap + Compare under each size to queue several of this bike.
XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 535 mm | 549 mm | 572 mm | 600 mm | 629 mm |
| Reach | 372 mm | 378 mm | 391 mm | 397 mm | 404 mm |
| Stack / Reach | 1.44 | 1.45 | 1.46 | 1.51 | 1.56 |
| Head tube angle | 70° | 70° | 70° | 70° | 70° |
| Seat tube angle (effective) | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Seat tube angle (actual) | — | — | — | — | — |
| Top tube (effective) | 530 mm | 540 mm | 560 mm | 575 mm | 590 mm |
| Head tube length | 115 mm | 130 mm | 155 mm | 185 mm | 215 mm |
| Seat tube length | 450 mm | 480 mm | 500 mm | 520 mm | 530 mm |
| Bottom bracket drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Bottom bracket height | — | — | — | — | — |
| Chainstay | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Front center | — | — | — | — | — |
| Wheelbase | 1020 mm | 1031 mm | 1052 mm | 1069 mm | 1086 mm |
| Fork rake (offset) | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Fork axle to crown | 396 mm | 396 mm | 396 mm | 396 mm | 396 mm |
| Trail | — | — | — | — | — |
| Standover | — | — | — | — | — |
| Pad / effective stack | — | — | — | — | — |
| Pad / effective reach | — | — | — | — | — |
Frame torque
No manufacturer-published frame torque chart is on file for this Van Rysel yet. Use the component torque guide for Shimano / SRAM fasteners, and follow printed specs on the frame and parts.
