Bikes
Framesets, cockpits, groupsets, and wheelsets.
Framesets, cockpits, groupsets, and wheelsets.
Trek

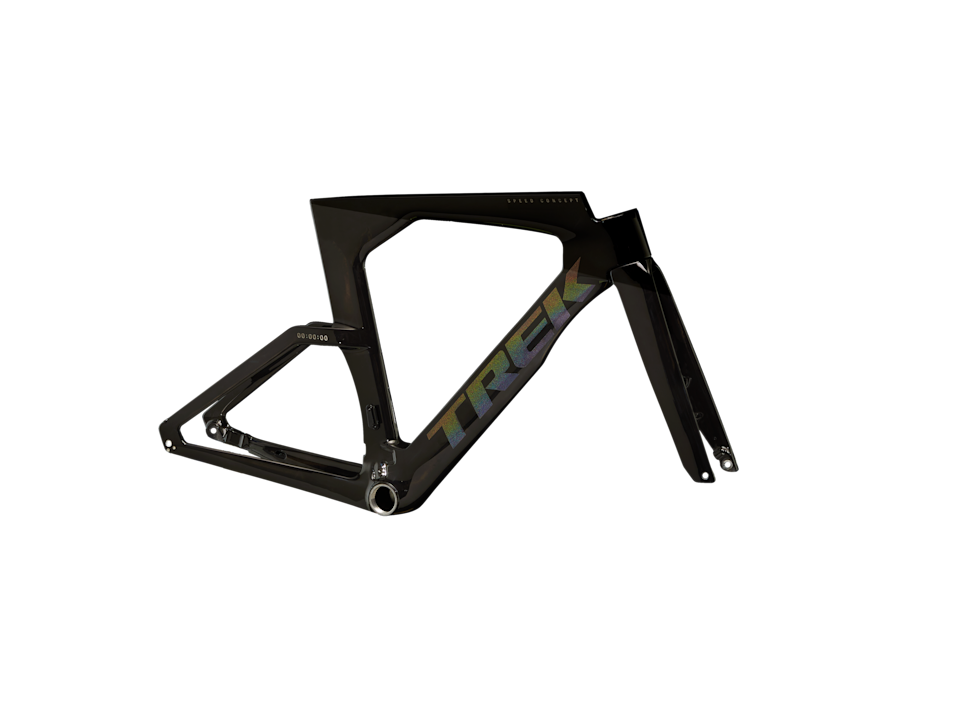

A time trial frameset in 4 sizes, from S to L.
Frameset price, size M
$7,535
sport · forward-biased · neutral handling
From Trek’s own numbers for the M, not marketing copy.
sport · forward-biased · neutral handling
From your saved height and inseam, not a height range.
Every size, straight from Trek’s chart. Blanks are numbers Trek doesn’t publish; we don’t fill them in.
| Measurement | ||||
|---|---|---|---|---|
| Stack (mm) | 492 | 517 | 541 | 565 |
| Reach (mm) | 390 | 416 | 426 | 445 |
| Stack / Reach | 1.26 | 1.24 | 1.27 | 1.27 |
| Head tube angle (°) | 72.2 | 72.5 | 72.5 | 72.5 |
| Seat tube angle (effective) (°) | 78 | 78 | 78 | 78 |
| Top tube (effective) (mm) | 495 | 518 | 541 | 565 |
| Chainstay (mm) | 410 | 410 | 410 | 410 |
| Wheelbase (mm) | 967 | 995 | 1020 | 1047 |
| Trail (mm) | 61 | 60 | 60 | 60 |
| Standover (mm) | 760 | 785 | 808 | 831 |
Trek’s geometry chart, read Jul 21, 2026.
| Size | Frameset weight(g) | Price(CAD) |
|---|---|---|
| S | 1932 | $7,535 |
| M | 1932 | $7,535 |
| ML | 1932 | $7,535 |
| L | 1932 | $7,535 |
Trek hasn’t published frame bolt torques we can point to yet
