Trek

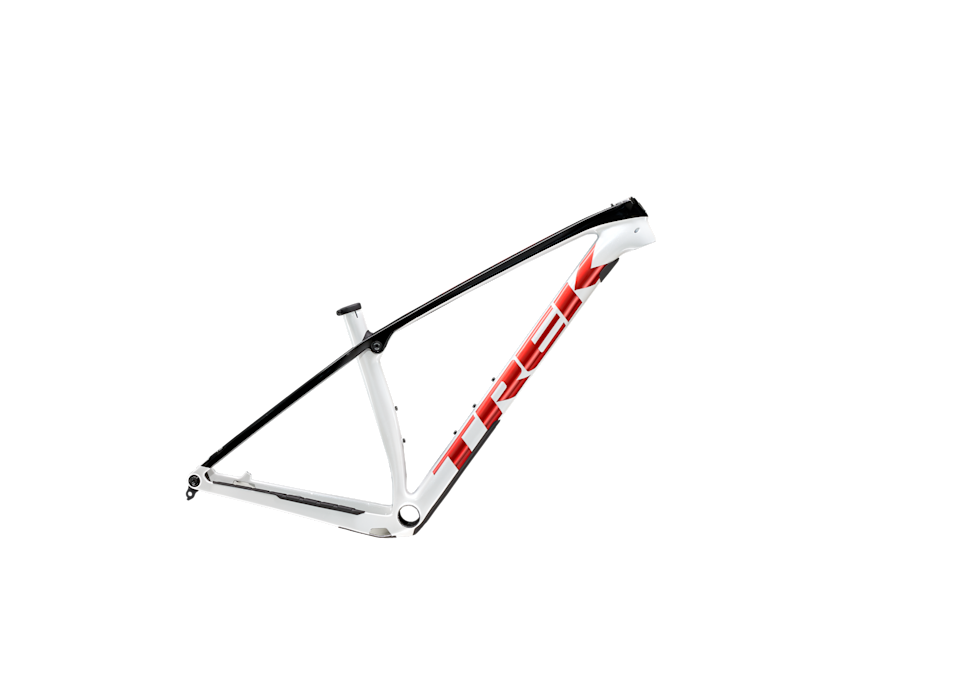

A cross-country mountain bike frameset in 5 sizes, from 1 to 5.
Frameset price, size 3
$3,014
sport · neutral handling
From Trek’s own numbers for the 3, not marketing copy.
sport · neutral handling
From your saved height and inseam, not a height range.
Every size, straight from Trek’s chart. Blanks are numbers Trek doesn’t publish; we don’t fill them in.
| Measurement | |||||
|---|---|---|---|---|---|
| Stack (mm) | 614 | 614 | 614 | 614 | 642 |
| Reach (mm) | 405 | 430 | 445 | 460 | 500 |
| Stack / Reach | 1.52 | 1.43 | 1.38 | 1.33 | 1.28 |
| Head tube angle (°) | 67 | 67 | 67 | 67 | 67 |
| Seat tube angle (effective) (°) | 74.3 | 74.3 | 74.3 | 74.3 | 74.3 |
| Top tube (effective) (mm) | 577 | 598 | 613 | 628 | 677 |
| Chainstay (mm) | 430 | 430 | 435 | 435 | 440 |
| Wheelbase (mm) | 1110 | 1135 | 1155 | 1171 | 1227 |
| Trail (mm) | Not published | Not published | Not published | Not published | Not published |
| Standover (mm) | 747 | 749 | 758 | 763 | 791 |
Trek’s geometry chart, read Jul 21, 2026.
| Size | Frameset weight(g) | Price(CAD) |
|---|---|---|
| 1 | 1200 | $3,014 |
| 2 | 1200 | $3,014 |
| 3 | 1200 | $3,014 |
| 4 | 1200 | $3,014 |
| 5 | 1200 | $3,014 |
Trek hasn’t published frame bolt torques we can point to yet
