Trek

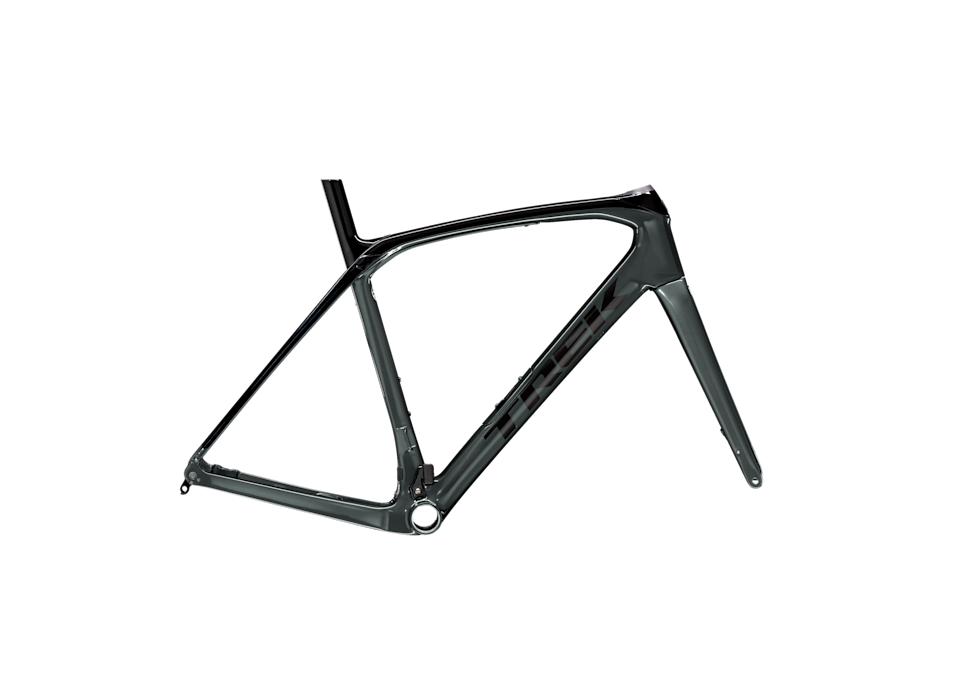

A road frameset in 7 sizes, from 47 to 60.
Frameset price, size 54
Not published
upright · neutral handling
From Trek’s own numbers for the 54, not marketing copy.
upright · neutral handling
From your saved height and inseam, not a height range.
Every size, straight from Trek’s chart. Blanks are numbers Trek doesn’t publish; we don’t fill them in.
| Measurement | |||||||
|---|---|---|---|---|---|---|---|
| Stack (mm) | 527 | 546 | 561 | 575 | 591 | 611 | 632 |
| Reach (mm) | 364 | 368 | 371 | 374 | 377 | 380 | 383 |
| Stack / Reach | 1.45 | 1.48 | 1.51 | 1.54 | 1.57 | 1.61 | 1.65 |
| Head tube angle (°) | 71 | 71.1 | 71.3 | 71.3 | 71.9 | 72 | 72.1 |
| Seat tube angle (effective) (°) | 74.6 | 74.6 | 74.2 | 73.7 | 73.3 | 73 | 72.8 |
| Top tube (effective) (mm) | 509 | 519 | 530 | 542 | 554 | 567 | 579 |
| Chainstay (mm) | 420 | 420 | 420 | 420 | 420 | 425 | 425 |
| Wheelbase (mm) | 986 | 996 | 1003 | 1010 | 1008 | 1022 | 1032 |
| Trail (mm) | 61 | 60 | 59 | 59 | 61 | 60 | 59 |
| Standover (mm) | 686 | 716 | 735 | 754 | 776 | 796 | 817 |
Trek’s geometry chart, read Aug 3, 2026.
Trek hasn’t published frame bolt torques we can point to yet
