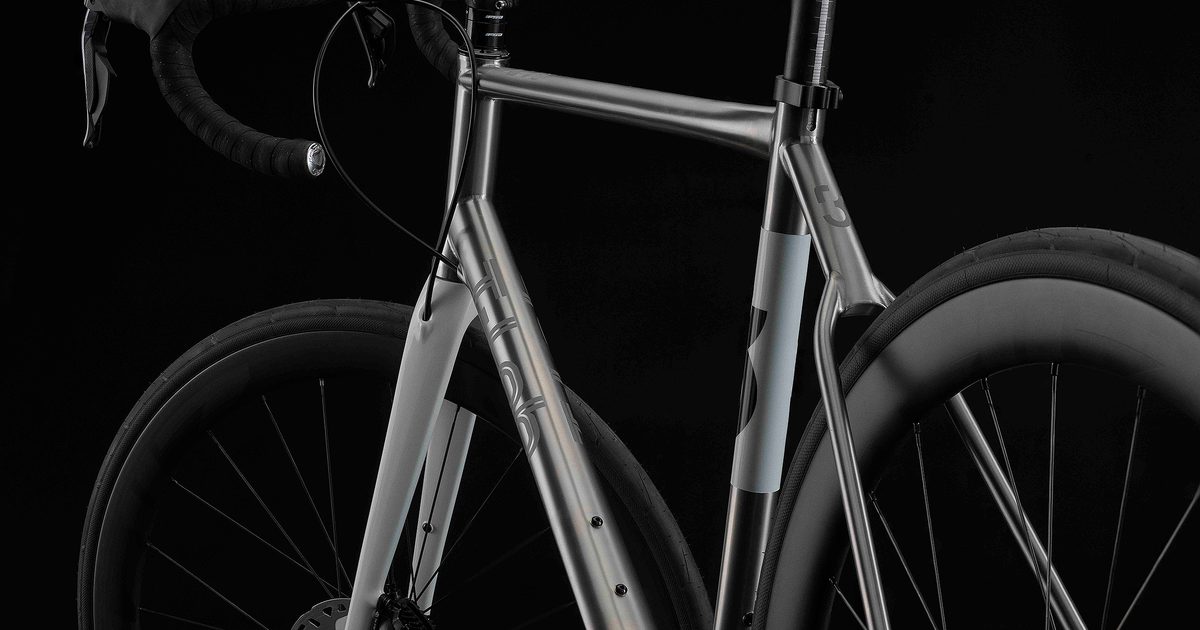

T-Lab
A road frameset in 6 sizes, from XXS to XL.
Frameset price, size S
$8,219
upright · rear-biased · neutral handling
From T-Lab’s own numbers for the S, not marketing copy.
upright · rear-biased · neutral handling
From your saved height and inseam, not a height range.
Every size, straight from T-Lab’s chart. Blanks are numbers T-Lab doesn’t publish; we don’t fill them in.
| Measurement | ||||||
|---|---|---|---|---|---|---|
| Stack (mm) | 515 | 537 | 559 | 580 | 599 | 618 |
| Reach (mm) | 355 | 363 | 372 | 385 | 400 | 414 |
| Stack / Reach | 1.45 | 1.48 | 1.50 | 1.51 | 1.50 | 1.49 |
| Head tube angle (°) | 70.3 | 71 | 72 | 72.5 | 72.5 | 72.5 |
| Seat tube angle (effective) (°) | 74 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Top tube (effective) (mm) | 495 | 515 | 530 | 550 | 570 | 590 |
| Chainstay (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
| Wheelbase (mm) | 970 | 980 | 986 | 1002 | 1022 | 1042 |
| Trail (mm) | 75 | 71 | 64 | 61 | 61 | 61 |
| Standover (mm) | 722 | 743 | 770 | 796 | 822 | 848 |
T-Lab’s geometry chart, read Jul 21, 2026.
| Size | Frameset weight(g) | Price(CAD) |
|---|---|---|
| XXS | 1780 | $8,219 |
| XS | 1780 | $8,219 |
| S | 1780 | $8,219 |
| M | 1780 | $8,219 |
| L | 1780 | $8,219 |
| XL | 1780 | $8,219 |
T-Lab hasn’t published frame bolt torques we can point to yet
