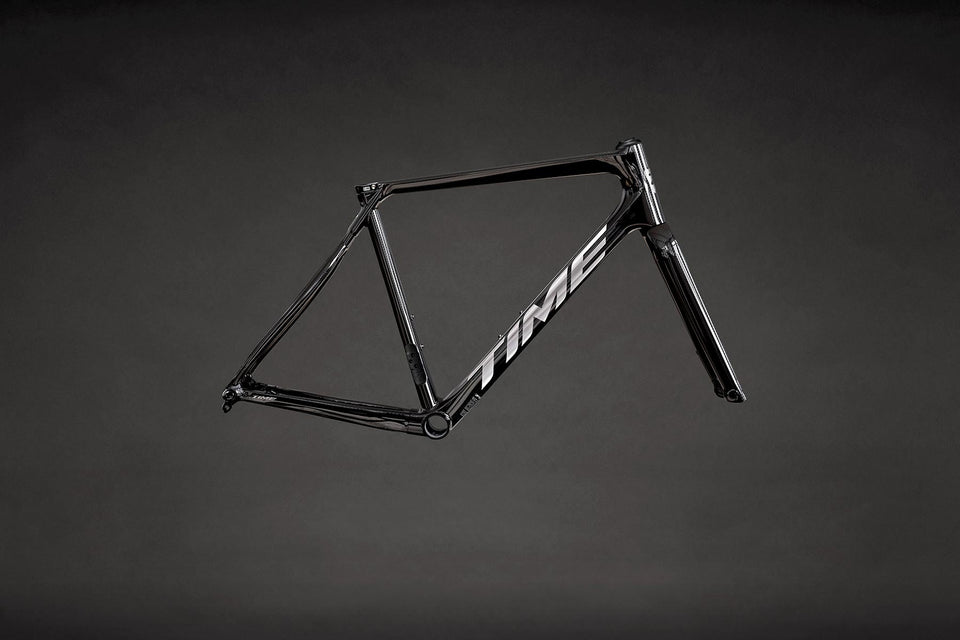

NXR2025

TIME · Road · 5 sizes

List · size M · CAD

$4,499

Kit weight not published

Start a build Shop frameset

Sourcehttps://timebicycles.cc/products/nxr-frameset

Frameset by size

Kit weight and list price per size. Gaps stay blank.

Size	Reach (mm)	Stack (mm)	Kit wt (g)	List (CAD)
XS	372	514	—	$4,499
S	377	538	—	$4,499
M	383	562	—	$4,499
L	390	582	—	$4,499
XL	395	601	—	$4,499

Retailer prices · size M

Best in-stock in CAD. Affiliate links may earn a commission.

Retailer	Price	Stock	Link
Survey list (CAD)	€2,999.00≈ $4,499 CAD	In stock	Buy

Start a build

Road

Fit Lab

Geometry by size

Tap + Compare under each size to queue several of this bike.

Swipe sideways for more sizes

Measurement	XS	S	M	L	XL
Frame geometry
Stack	514 mm	538 mm	562 mm	582 mm	601 mm
Reach	372 mm	377 mm	383 mm	390 mm	395 mm
Stack / Reach	1.38	1.43	1.47	1.49	1.52
Head tube angle	71.5°	72.5°	73°	73°	73°
Seat tube angle (effective)	74.7°	74°	73°	73°	73°
Seat tube angle (actual)	—	—	—	—	—
Top tube (effective)	513 mm	531 mm	555 mm	570 mm	580 mm
Head tube length	122 mm	142 mm	166 mm	186 mm	204 mm
Seat tube length	—	—	—	—	—
Bottom bracket drop	65 mm	65 mm	65 mm	65 mm	65 mm
Bottom bracket height	—	—	—	—	—
Chainstay	415 mm	415 mm	415 mm	415 mm	415 mm
Front center	580 mm	579 mm	588 mm	603 mm	608 mm
Wheelbase	991 mm	990 mm	999 mm	1014 mm	1020 mm
Fork rake (offset)	47 mm	47 mm	47 mm	47 mm	47 mm
Fork axle to crown	373 mm	373 mm	373 mm	373 mm	373 mm
Trail	67 mm	61 mm	58 mm	58 mm	58 mm
Standover	748 mm	770 mm	800 mm	825 mm	845 mm
Pad / effective stack	—	—	—	—	—
Pad / effective reach	—	—	—	—	—

Fasteners

Frame torque

Groupset & component torque →

No manufacturer-published frame torque chart is on file for this TIME yet. Use the component torque guide for Shimano / SRAM fasteners, and follow printed specs on the frame and parts.
