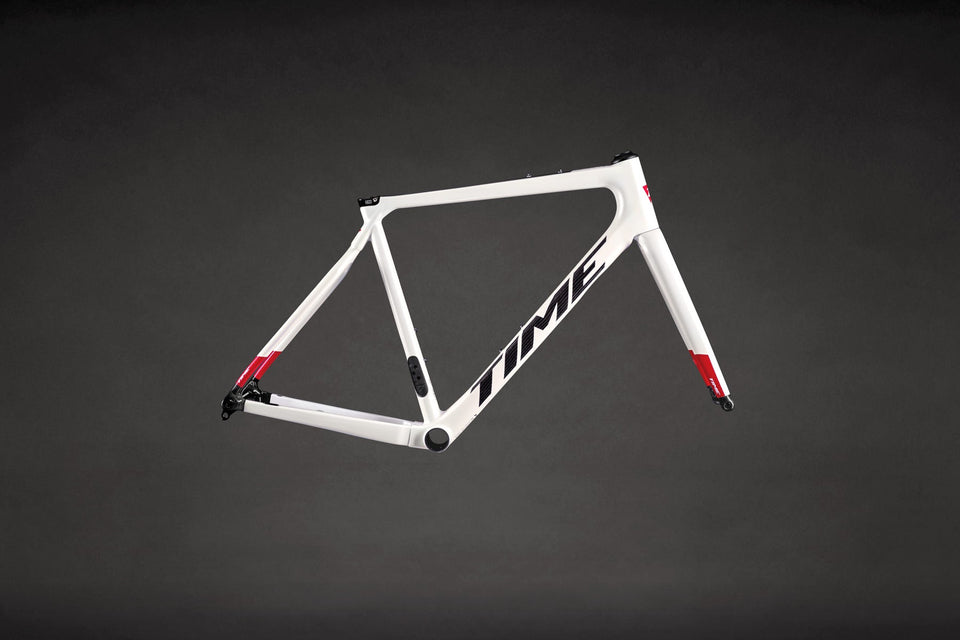

ADHX 45 (Gravel)2025
TIME · Gravel · 5 sizes
$5,999
Kit weight not published
https://timebicycles.cc/products/adhx-45-frameset-2025
Frameset by size
Kit weight and list price per size. Gaps stay blank.
Retailer prices · size M
Best in-stock in CAD. Affiliate links may earn a commission.
| Retailer | Price | Stock | Link |
|---|---|---|---|
| Survey list (CAD) | €3,999.00≈ $5,999 CAD | In stock | Buy |
Gravel
Geometry by size
Tap + Compare under each size to queue several of this bike.
XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 532 mm | 543 mm | 564 mm | 583 mm | 603 mm |
| Reach | 364 mm | 371 mm | 381 mm | 390 mm | 395 mm |
| Stack / Reach | 1.46 | 1.46 | 1.48 | 1.50 | 1.53 |
| Head tube angle | 70.3° | 71.3° | 72.3° | 72.3° | 72.8° |
| Seat tube angle (effective) | 73.5° | 72.8° | 72.8° | 72.8° | 72.8° |
| Seat tube angle (actual) | — | — | — | — | — |
| Top tube (effective) | 519 mm | 537 mm | 553 mm | 568 mm | 578 mm |
| Head tube length | 123 mm | 131 mm | 149 mm | 169 mm | 188 mm |
| Seat tube length | — | — | — | — | — |
| Bottom bracket drop | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm |
| Bottom bracket height | — | — | — | — | — |
| Chainstay | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Front center | 589 mm | 591 mm | 598 mm | 613 mm | 618 mm |
| Wheelbase | 1009 mm | 1011 mm | 1018 mm | 1033 mm | 1038 mm |
| Fork rake (offset) | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Fork axle to crown | 383 mm | 383 mm | 383 mm | 383 mm | 383 mm |
| Trail | 71 mm | 65 mm | 59 mm | 59 mm | 57 mm |
| Standover | 763 mm | 785 mm | 804 mm | 829 mm | 849 mm |
| Pad / effective stack | — | — | — | — | — |
| Pad / effective reach | — | — | — | — | — |
Frame torque
No manufacturer-published frame torque chart is on file for this TIME yet. Use the component torque guide for Shimano / SRAM fasteners, and follow printed specs on the frame and parts.
