Specialized

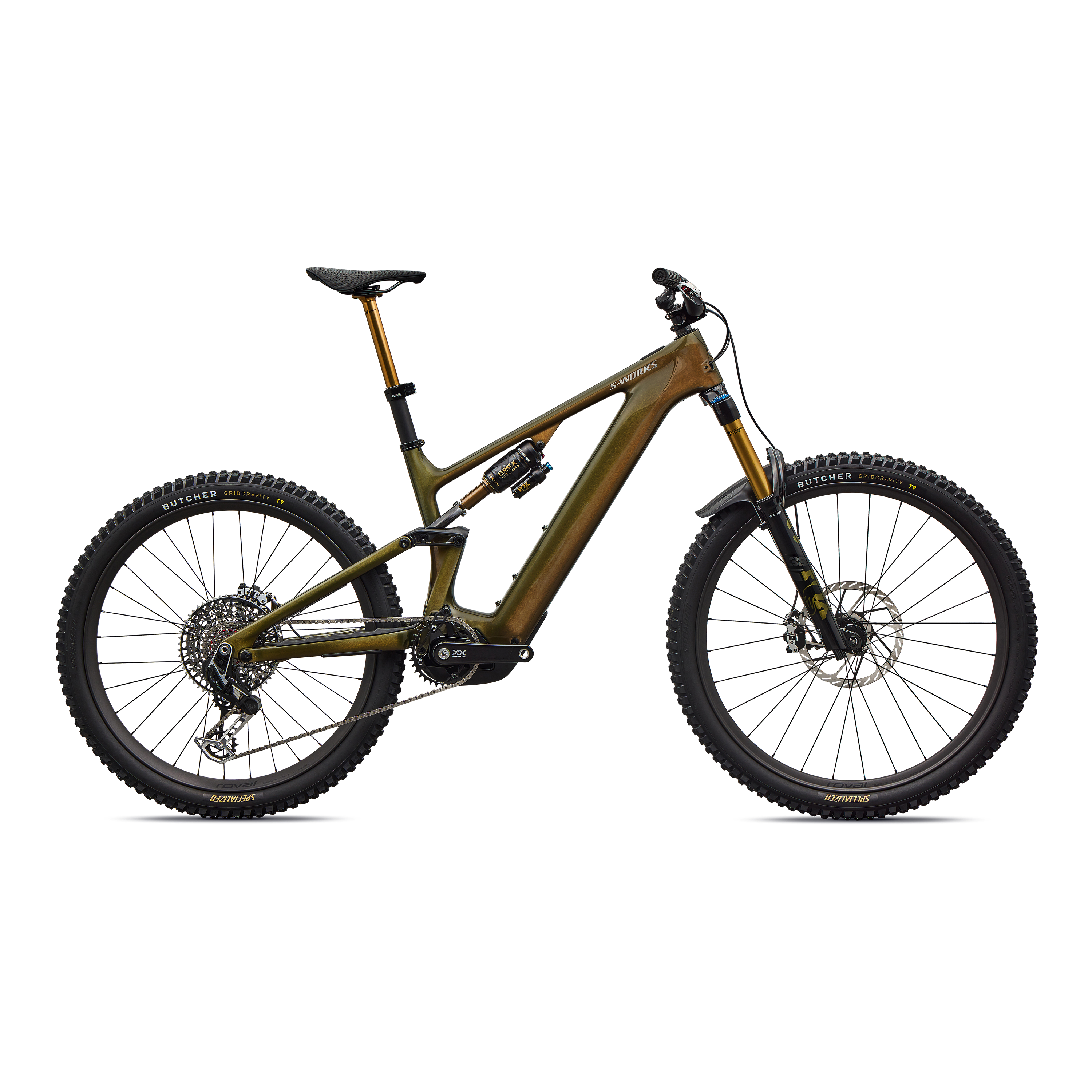

A trail mountain bike frameset in 5 sizes, from S2 to S6.
Frameset price, size S4
$8,220
sport · forward-biased · neutral handling
From Specialized’s own numbers for the S4, not marketing copy.
sport · forward-biased · neutral handling
From your saved height and inseam, not a height range.
Every size, straight from Specialized’s chart. Blanks are numbers Specialized doesn’t publish; we don’t fill them in.
| Measurement | |||||
|---|---|---|---|---|---|
| Stack (mm) | 618 | 626 | 638 | 652 | 667 |
| Reach (mm) | 435 | 455 | 480 | 505 | 535 |
| Stack / Reach | 1.42 | 1.38 | 1.33 | 1.29 | 1.25 |
| Head tube angle (°) | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| Seat tube angle (effective) (°) | 77 | 77 | 77 | 77 | 77 |
| Top tube (effective) (mm) | 578 | 599 | 627 | 655 | 689 |
| Chainstay (mm) | 435 | 435 | 435 | 435 | 435 |
| Wheelbase (mm) | 1200 | 1223 | 1254 | 1286 | 1323 |
| Trail (mm) | 132 | 132 | 132 | 132 | 132 |
| Standover (mm) | 753 | 754 | 753 | 758 | 761 |
Specialized’s geometry chart, read Jul 21, 2026.
| Size | Frameset weight(g) | Price(CAD) |
|---|---|---|
| S2 | 12360 | $8,220 |
| S3 | 12360 | $8,220 |
| S4 | 12360 | $8,220 |
| S5 | 12360 | $8,220 |
| S6 | 12360 | $8,220 |
Specialized · seat-wedge frames — Typical values from Specialized road user manuals (e.g. Roubaix / Aethos / Tarmac). Printed wedge / axle markings win when present.
| Bolt | Torque(Nm) | Torque(in·lb) | Tool |
|---|---|---|---|
| Seatpost wedge / binderCarbon paste per manual; do not grease carbon seat tube. | 6.2 | 54.9 | 4 mm hex |
| Front thru-axle | 15 | 132.8 | 6 mm hex |
| Rear thru-axle | 15 | 132.8 | 6 mm hex |
| Bottle cage | 2.8 | 24.8 | 3 mm hex |
| Derailleur hanger | 4.5 | 39.8 | 4 mm hex |
| Stem @ steerer (Future Stem / common)Confirm printed stem / bar specs when they disagree. | 5 | 44.3 | 4 mm hex |
Straight from Specialized’s own chart, read Jul 24, 2026. Anything printed on the part itself always wins.
