Seatpost wedge / binder
Carbon paste per manual; do not grease carbon seat tube.
6.2 Nm
54.9 in·lb
4 mm hex

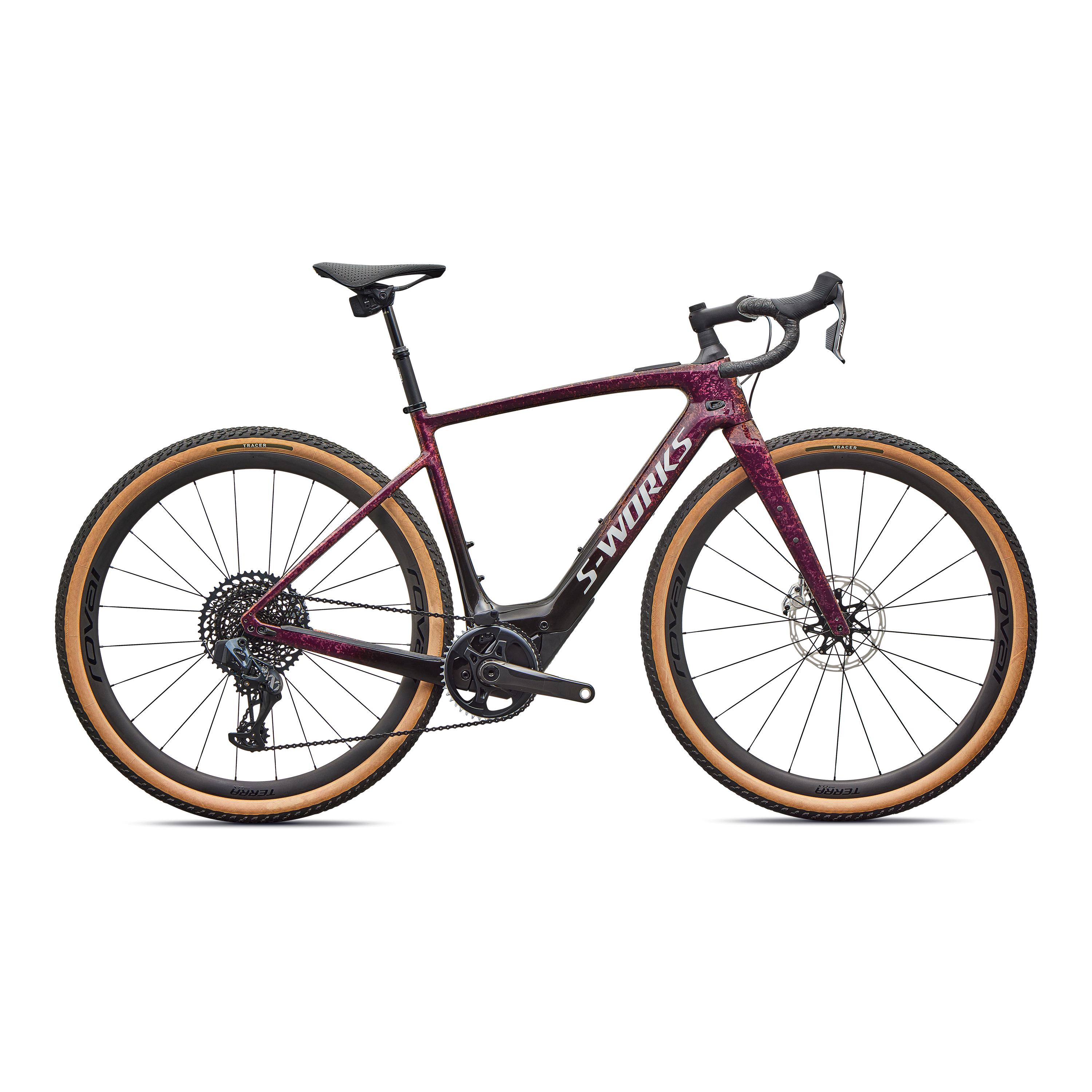

Turbo Creo 22025
Specialized · Gravel · 6 sizes
Price not published
Kit weight not published
https://www.specialized.com/us/en/s-works-turbo-creo-2-sram-red--xx1-eagle-axs/p/4221805
Frameset by size
Kit weight and list price per size. Gaps stay blank.
Retailer prices · size 54
Best in-stock in CAD. Affiliate links may earn a commission.
No retailer offers yet. Nightly feed jobs will populate prices.
Geometry by size
Tap + Compare under each size to queue several of this bike.
49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Stack | 578 mm | 578 mm | 595 mm | 607 mm | 638 mm | 663 mm |
| Reach | 365 mm | 374 mm | 383 mm | 392 mm | 401 mm | 410 mm |
| Stack / Reach | 1.58 | 1.54 | 1.55 | 1.55 | 1.59 | 1.62 |
| Head tube angle | 71° | 71° | 71° | 71° | 71° | 71° |
| Seat tube angle (effective) | 74° | 74° | 74° | 73.5° | 73.5° | 73° |
| Seat tube angle (actual) | — | — | — | — | — | — |
| Top tube (effective) | 531 mm | 540 mm | 554 mm | 572 mm | 590 mm | 613 mm |
| Head tube length | 90 mm | 90 mm | 108 mm | 120 mm | 153 mm | 180 mm |
| Seat tube length | 410 mm | 430 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Bottom bracket drop | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Bottom bracket height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Chainstay | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Front center | 600.1 mm | 609 mm | 623.8 mm | 636.6 mm | 656.2 mm | 673.8 mm |
| Wheelbase | 1022 mm | 1031 mm | 1046 mm | 1059 mm | 1079 mm | 1097 mm |
| Fork rake (offset) | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Fork axle to crown | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Trail | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover | 731 mm | 743 mm | 773 mm | 793 mm | 824 mm | 852 mm |
| Pad / effective stack | — | — | — | — | — | — |
| Pad / effective reach | — | — | — | — | — | — |
Frame torque
Specialized · seat-wedge frames — Typical values from Specialized road user manuals (e.g. Roubaix / Aethos / Tarmac). Printed wedge / axle markings win when present.
Front thru-axle
15 Nm
132.8 in·lb
6 mm hex
Rear thru-axle
15 Nm
132.8 in·lb
6 mm hex
Bottle cage
2.8 Nm
24.8 in·lb
3 mm hex
Derailleur hanger
4.5 Nm
39.8 in·lb
4 mm hex
