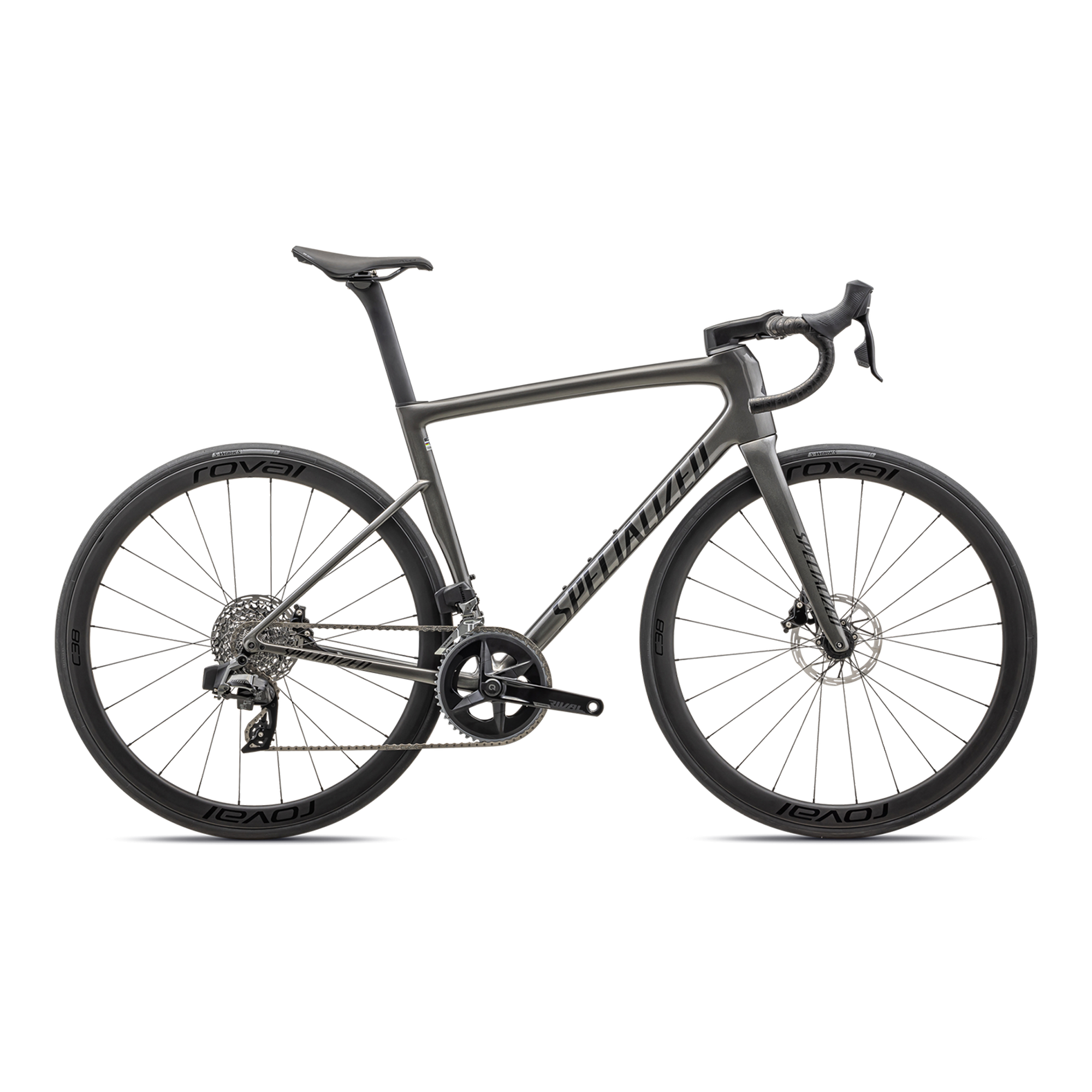

Specialized Tarmac SL8 frameset · RideInsights

Tarmac SL82024

Specialized · Road · 7 sizes

List · size 54 · CAD

$5,600

Kit weight not published

Start a build Shop frameset

Sourcehttps://www.specialized.com/us/en/tarmac-sl8-expert/p/216955

Frameset by size

Kit weight and list price per size. Gaps stay blank.

Size	Reach (mm)	Stack (mm)	Kit wt (g)	List (CAD)
44	366	501	—	$5,600
49	375	514	—	$5,600
52	380	527	—	$5,600
54	384	544	—	$5,600
56	395	565	—	$5,600
58	402	591	—	$5,600

Retailer prices · size 54

Best in-stock in CAD. Affiliate links may earn a commission.

Retailer	Price	Stock	Link
Survey list (CAD)	$5,599.99$6,999.99	In stock	Buy

Start a build

RoadBarSpecialized Expert Alloy Shallow Bend

Fit Lab

Geometry by size

Tap + Compare under each size to queue several of this bike.

Swipe sideways for more sizes

Measurement	44	49	52	54	56	58	61
Frame geometry
Stack	501 mm	514 mm	527 mm	544 mm	565 mm	591 mm	612 mm
Reach	366 mm	375 mm	380 mm	384 mm	395 mm	402 mm	408 mm
Stack / Reach	1.37	1.37	1.39	1.42	1.43	1.47	1.50
Head tube angle	70.5°	71.8°	72.5°	73°	73.5°	73.5°	74°
Seat tube angle (effective)	75.5°	75.5°	74°	74°	73.5°	73.5°	73°
Seat tube angle (actual)	—	—	—	—	—	—	—
Top tube (effective)	496 mm	509 mm	531 mm	541 mm	563 mm	577 mm	595 mm
Head tube length	99 mm	109 mm	120 mm	137 mm	157 mm	184 mm	204 mm
Seat tube length	433 mm	445 mm	456 mm	473 mm	494 mm	515 mm	545 mm
Bottom bracket drop	74 mm	74 mm	74 mm	72 mm	72 mm	72 mm	72 mm
Bottom bracket height	266 mm	266 mm	266 mm	268 mm	268 mm	268 mm	268 mm
Chainstay	410 mm	410 mm	410 mm	410 mm	410 mm	410 mm	410 mm
Front center	572 mm	574 mm	577 mm	579 mm	592 mm	606 mm	613 mm
Wheelbase	970 mm	973 mm	975 mm	978 mm	991 mm	1006 mm	1013 mm
Fork rake (offset)	47 mm	47 mm	47 mm	44 mm	44 mm	44 mm	44 mm
Fork axle to crown	370 mm	370 mm	370 mm	370 mm	370 mm	370 mm	370 mm
Trail	71 mm	63 mm	58 mm	58 mm	55 mm	55 mm	52 mm
Standover	723 mm	735 mm	746 mm	768 mm	786 mm	808 mm	834 mm
Pad / effective stack	509 mm	522 mm	535 mm	552 mm	573 mm	599 mm	620 mm
Pad / effective reach	363 mm	372 mm	377 mm	381 mm	393 mm	400 mm	406 mm

Fasteners

Frame torque

Groupset & component torque →

Specialized · seat-wedge frames — Typical values from Specialized road user manuals (e.g. Roubaix / Aethos / Tarmac). Printed wedge / axle markings win when present.

Seatpost wedge / binder

Carbon paste per manual; do not grease carbon seat tube.

6.2 Nm

54.9 in·lb

4 mm hex

Front thru-axle

15 Nm

132.8 in·lb

6 mm hex

Rear thru-axle

15 Nm

132.8 in·lb

6 mm hex

Bottle cage

2.8 Nm

24.8 in·lb

3 mm hex

Derailleur hanger

4.5 Nm

39.8 in·lb

4 mm hex
