Specialized

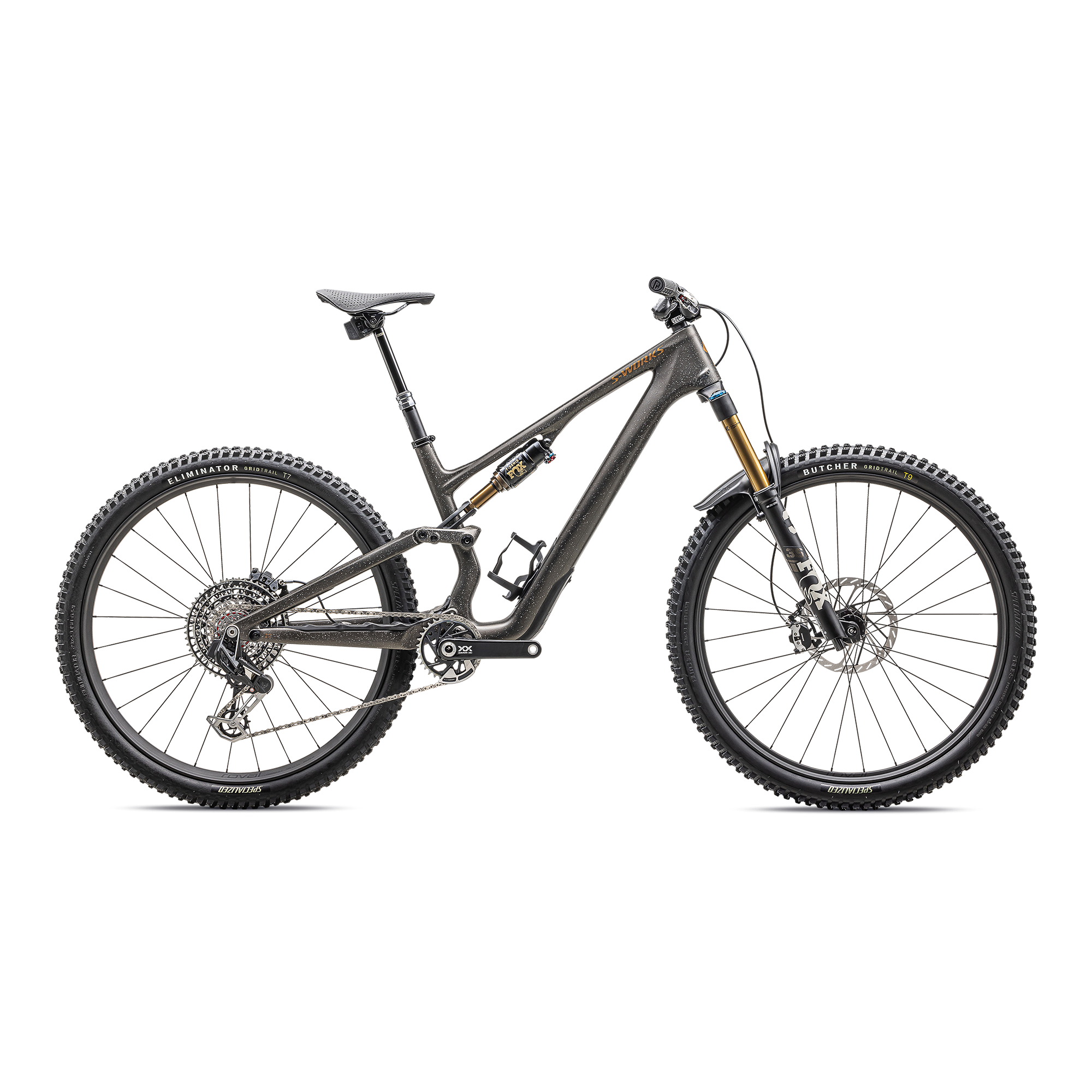

A trail mountain bike frameset in 6 sizes, from S1 to S6.
Frameset price, size S3
$4,932
sport · forward-biased · neutral handling
From Specialized’s own numbers for the S3, not marketing copy.
sport · forward-biased · neutral handling
From your saved height and inseam, not a height range.
Every size, straight from Specialized’s chart. Blanks are numbers Specialized doesn’t publish; we don’t fill them in.
| Measurement | ||||||
|---|---|---|---|---|---|---|
| Stack (mm) | 608 | 618 | 627 | 640 | 654 | 667 |
| Reach (mm) | 400 | 425 | 450 | 475 | 500 | 530 |
| Stack / Reach | 1.52 | 1.45 | 1.39 | 1.35 | 1.31 | 1.26 |
| Head tube angle (°) | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| Seat tube angle (effective) (°) | 78 | 77 | 77 | 76.5 | 76.5 | 76.5 |
| Top tube (effective) (mm) | 541 | 573 | 595 | 624 | 647 | 677 |
| Chainstay (mm) | 430 | 432 | 435 | 435 | 445 | 445 |
| Wheelbase (mm) | 1149 | 1181 | 1213 | 1244 | 1285 | 1322 |
| Trail (mm) | 129 | 130 | 130 | 130 | 130 | 130 |
| Standover (mm) | 738 | 751 | 745 | 745 | 745 | 751 |
Specialized’s geometry chart, read Jul 21, 2026.
| Size | Frameset weight(g) | Price(CAD) |
|---|---|---|
| S1 | 2840 | $4,932 |
| S2 | 2840 | $4,932 |
| S3 | 2840 | $4,932 |
| S4 | 2840 | $4,932 |
| S5 | 2840 | $4,932 |
| S6 | 2840 | $4,932 |
Specialized · seat-wedge frames — Typical values from Specialized road user manuals (e.g. Roubaix / Aethos / Tarmac). Printed wedge / axle markings win when present.
| Bolt | Torque(Nm) | Torque(in·lb) | Tool |
|---|---|---|---|
| Seatpost wedge / binderCarbon paste per manual; do not grease carbon seat tube. | 6.2 | 54.9 | 4 mm hex |
| Front thru-axle | 15 | 132.8 | 6 mm hex |
| Rear thru-axle | 15 | 132.8 | 6 mm hex |
| Bottle cage | 2.8 | 24.8 | 3 mm hex |
| Derailleur hanger | 4.5 | 39.8 | 4 mm hex |
| Stem @ steerer (Future Stem / common)Confirm printed stem / bar specs when they disagree. | 5 | 44.3 | 4 mm hex |
Straight from Specialized’s own chart, read Jul 24, 2026. Anything printed on the part itself always wins.
