Specialized

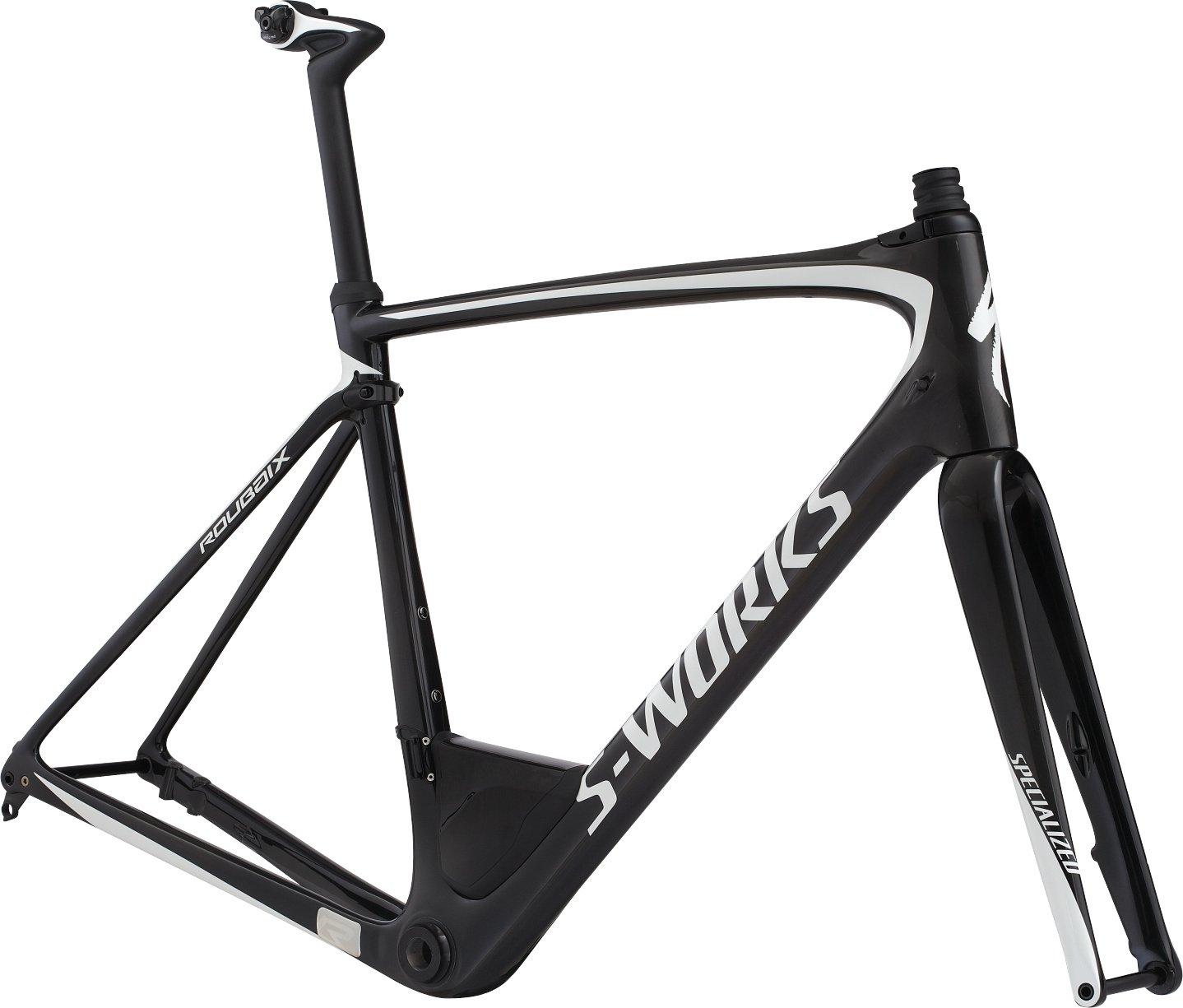

A road frameset in 6 sizes, from 49 to 61.
Frameset price, size 54
Not published
upright · neutral handling
From Specialized’s own numbers for the 54, not marketing copy.
upright · neutral handling
From your saved height and inseam, not a height range.
Every size, straight from Specialized’s chart. Blanks are numbers Specialized doesn’t publish; we don’t fill them in.
| Measurement | ||||||
|---|---|---|---|---|---|---|
| Stack (mm) | 549 | 569 | 585 | 611 | 644 | 665 |
| Reach (mm) | 369 | 371 | 375 | 381 | 386 | 392 |
| Stack / Reach | 1.49 | 1.53 | 1.56 | 1.60 | 1.67 | 1.70 |
| Head tube angle (°) | 72 | 72.3 | 72.8 | 73.5 | 73.5 | 74 |
| Seat tube angle (effective) (°) | 74 | 74 | 74 | 73.5 | 73.5 | 73.5 |
| Top tube (effective) (mm) | 527 | 534.9 | 545 | 561.8 | 576.3 | 588.5 |
| Chainstay (mm) | 413 | 413 | 415 | 415 | 418 | 418 |
| Wheelbase (mm) | 981 | 987 | 987 | 993 | 1011 | 1018 |
| Trail (mm) | 58.5 | 57 | 61 | 55 | 55 | 52 |
| Standover (mm) | 715.5 | 743 | 762 | 785 | 813 | 844.3 |
Specialized’s geometry chart, read Aug 3, 2026.
Specialized · seat-wedge frames — Typical values from Specialized road user manuals (e.g. Roubaix / Aethos / Tarmac). Printed wedge / axle markings win when present.
| Bolt | Torque(Nm) | Torque(in·lb) | Tool |
|---|---|---|---|
| Seatpost wedge / binderCarbon paste per manual; do not grease carbon seat tube. | 6.2 | 54.9 | 4 mm hex |
| Front thru-axle | 15 | 132.8 | 6 mm hex |
| Rear thru-axle | 15 | 132.8 | 6 mm hex |
| Bottle cage |
|---|
| 2.8 |
| 24.8 |
| 3 mm hex |
| Derailleur hanger | 4.5 | 39.8 | 4 mm hex |
|---|
| Stem @ steerer (Future Stem / common)Confirm printed stem / bar specs when they disagree. | 5 | 44.3 | 4 mm hex |
|---|
Straight from Specialized’s own chart, read Jul 24, 2026. Anything printed on the part itself always wins.
