Specialized

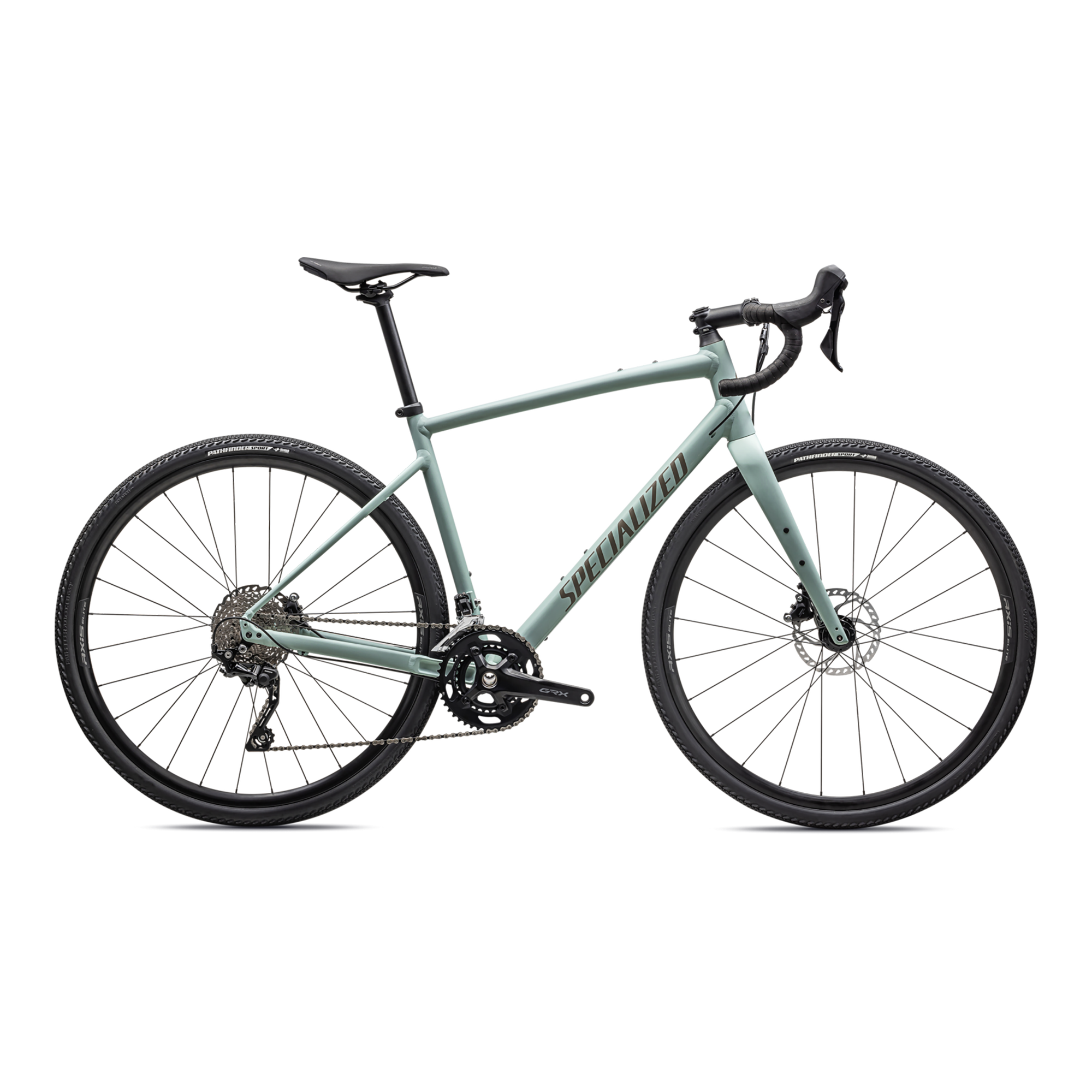

A gravel frameset in 7 sizes, from 44 to 61.
Frameset price, size 54
Not published
endurance · neutral handling
From Specialized’s own numbers for the 54, not marketing copy.
endurance · neutral handling
From your saved height and inseam, not a height range.
Every size, straight from Specialized’s chart. Blanks are numbers Specialized doesn’t publish; we don’t fill them in.
| Measurement | |||||||
|---|---|---|---|---|---|---|---|
| Stack (mm) | 529 | 545 | 561 | 578 | 599 | 618 | 635 |
| Reach (mm) | 357 | 365 | 374 | 383 | 392 | 401 | 410 |
| Stack / Reach | 1.48 | 1.49 | 1.50 | 1.51 | 1.53 | 1.54 | 1.55 |
| Head tube angle (°) | 69.5 | 70 | 70.5 | 71.3 | 71.8 | 71.8 | 71.8 |
| Seat tube angle (effective) (°) | 74.5 | 74 | 73.8 | 73.5 | 73.5 | 73.5 | 73.5 |
| Top tube (effective) (mm) | 504 | 521 | 538 | 554 | 570 | 584 | 598 |
| Chainstay (mm) | 432 | 432 | 432 | 432 | 432 | 432 | 432 |
| Wheelbase (mm) | 1008 | 1017 | 1027 | 1035 | 1046 | 1061 | 1076 |
| Trail (mm) | 72 | 69 | 66 | 61 | 57 | 57 | 57 |
| Standover (mm) | 680 | 703 | 723 | 763 | 789 | 808 | 834 |
Specialized’s geometry chart, read Aug 3, 2026.
Specialized · seat-wedge frames — Typical values from Specialized road user manuals (e.g. Roubaix / Aethos / Tarmac). Printed wedge / axle markings win when present.
| Bolt | Torque(Nm) | Torque(in·lb) | Tool |
|---|---|---|---|
| Seatpost wedge / binderCarbon paste per manual; do not grease carbon seat tube. | 6.2 | 54.9 | 4 mm hex |
| Front thru-axle | 15 | 132.8 | 6 mm hex |
| Rear thru-axle | 15 | 132.8 | 6 mm hex |
| Bottle cage |
|---|
| 2.8 |
| 24.8 |
| 3 mm hex |
| Derailleur hanger | 4.5 | 39.8 | 4 mm hex |
|---|
| Stem @ steerer (Future Stem / common)Confirm printed stem / bar specs when they disagree. | 5 | 44.3 | 4 mm hex |
|---|
Straight from Specialized’s own chart, read Jul 24, 2026. Anything printed on the part itself always wins.
