Specialized

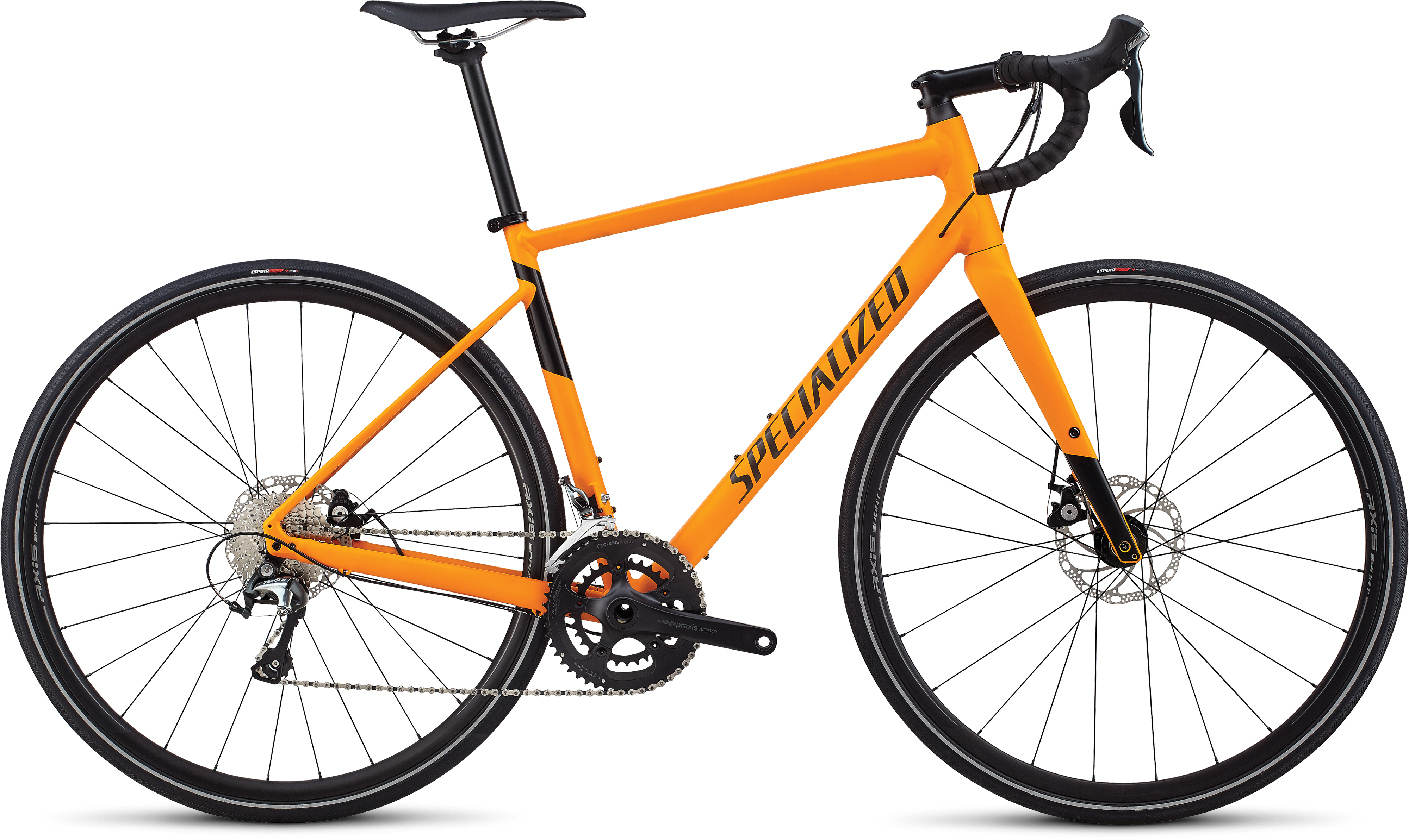

A gravel frameset in 6 sizes, from 48 to 61.
Frameset price, size 54
Not published
endurance · rear-biased · snappy handling
From Specialized’s own numbers for the 54, not marketing copy.
endurance · rear-biased · snappy handling
From your saved height and inseam, not a height range.
Every size, straight from Specialized’s chart. Blanks are numbers Specialized doesn’t publish; we don’t fill them in.
| Measurement | ||||||
|---|---|---|---|---|---|---|
| Stack (mm) | 554 | 560 | 577 | 598 | 624 | 647 |
| Reach (mm) | 365 | 372 | 378 | 384 | 390 | 397 |
| Stack / Reach | 1.52 | 1.50 | 1.53 | 1.56 | 1.60 | 1.63 |
| Head tube angle (°) | 70.8 | 71 | 71.9 | 72.5 | 72.5 | 72.8 |
| Seat tube angle (effective) (°) | 73.5 | 73.5 | 73.5 | 73.5 | 74 | 74 |
| Top tube (effective) (mm) | 524 | 532 | 549 | 561 | 575 | 589 |
| Chainstay (mm) | 422 | 422 | 424 | 424 | 424 | 424 |
| Wheelbase (mm) | 1000 | 1007 | 1007 | 1014 | 1028 | 1039 |
| Trail (mm) | 56 | 58 | 58 | 62 | 62 | 64 |
| Standover (mm) | 712 | 734 | 761 | 783 | 810 | 837 |
Specialized’s geometry chart, read Aug 3, 2026.
Specialized · seat-wedge frames — Typical values from Specialized road user manuals (e.g. Roubaix / Aethos / Tarmac). Printed wedge / axle markings win when present.
| Bolt | Torque(Nm) | Torque(in·lb) | Tool |
|---|---|---|---|
| Seatpost wedge / binderCarbon paste per manual; do not grease carbon seat tube. | 6.2 | 54.9 | 4 mm hex |
| Front thru-axle | 15 | 132.8 | 6 mm hex |
| Rear thru-axle | 15 | 132.8 | 6 mm hex |
| Bottle cage |
|---|
| 2.8 |
| 24.8 |
| 3 mm hex |
| Derailleur hanger | 4.5 | 39.8 | 4 mm hex |
|---|
| Stem @ steerer (Future Stem / common)Confirm printed stem / bar specs when they disagree. | 5 | 44.3 | 4 mm hex |
|---|
Straight from Specialized’s own chart, read Jul 24, 2026. Anything printed on the part itself always wins.
