Specialized

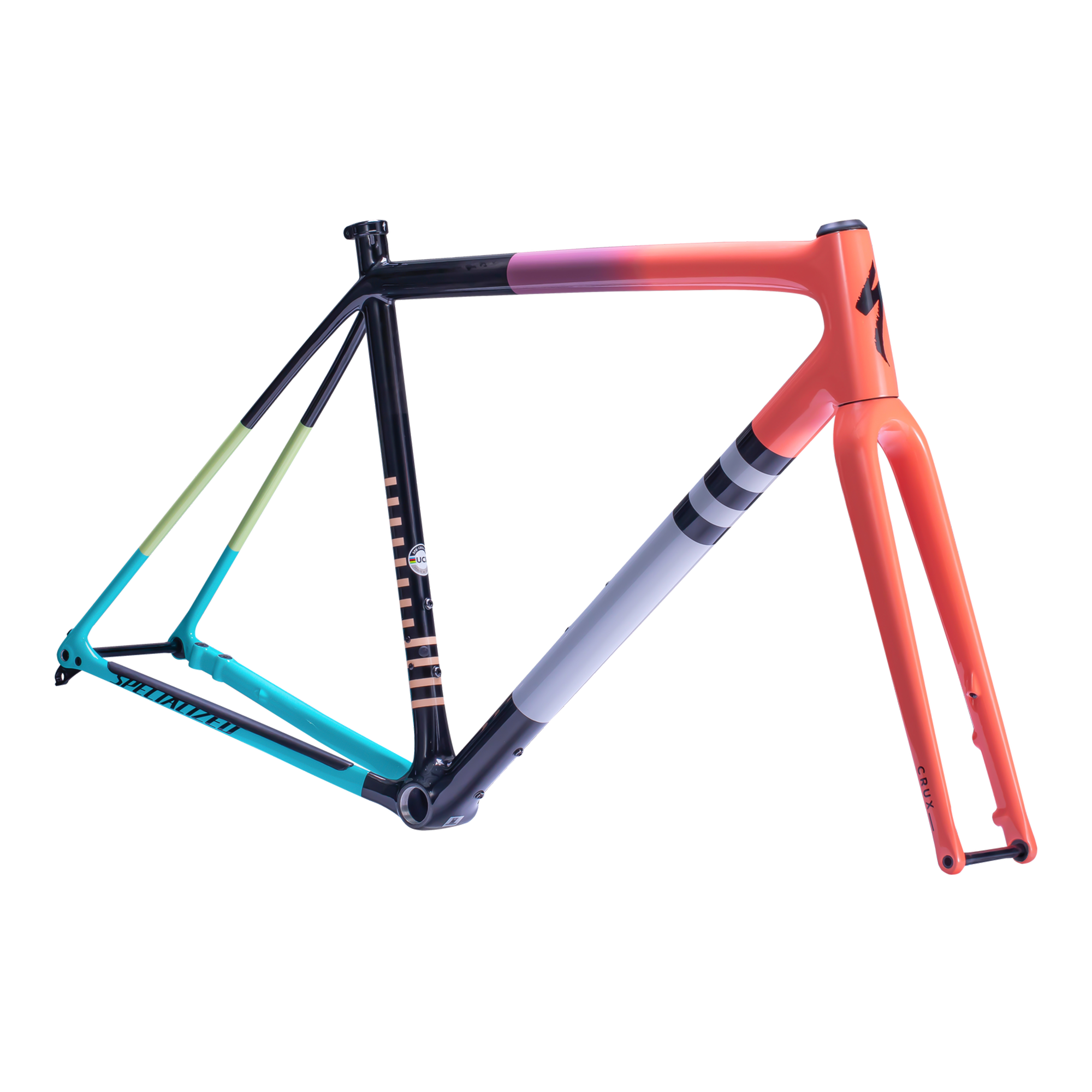

A gravel frameset in 6 sizes, from 49 to 61.
Frameset price, size 54
Not published
aggressive · neutral handling
From Specialized’s own numbers for the 54, not marketing copy.
aggressive · neutral handling
From your saved height and inseam, not a height range.
Every size, straight from Specialized’s chart. Blanks are numbers Specialized doesn’t publish; we don’t fill them in.
| Measurement | ||||||
|---|---|---|---|---|---|---|
| Stack (mm) | 530 | 547 | 560 | 578 | 598 | 621 |
| Reach (mm) | 375 | 382 | 388 | 397 | 405 | 415 |
| Stack / Reach | 1.41 | 1.43 | 1.44 | 1.46 | 1.48 | 1.50 |
| Head tube angle (°) | 70.5 | 71.3 | 71.5 | 72 | 72.3 | 72.5 |
| Seat tube angle (effective) (°) | 75.5 | 74 | 74 | 73.5 | 73.5 | 73.5 |
| Top tube (effective) (mm) | 512 | 539 | 549 | 568 | 582 | 599 |
| Chainstay (mm) | 425 | 425 | 425 | 425 | 425 | 425 |
| Wheelbase (mm) | 1008 | 1014 | 1023 | 1033 | 1045 | 1059 |
| Trail (mm) | 74 | 69 | 67 | 64 | 62 | 60 |
| Standover (mm) | 749 | 772 | 794 | 816 | 841 | 866 |
Specialized’s geometry chart, read Aug 3, 2026.
Specialized · seat-wedge frames — Typical values from Specialized road user manuals (e.g. Roubaix / Aethos / Tarmac). Printed wedge / axle markings win when present.
| Bolt | Torque(Nm) | Torque(in·lb) | Tool |
|---|---|---|---|
| Seatpost wedge / binderCarbon paste per manual; do not grease carbon seat tube. | 6.2 | 54.9 | 4 mm hex |
| Front thru-axle | 15 | 132.8 | 6 mm hex |
| Rear thru-axle | 15 | 132.8 | 6 mm hex |
| Bottle cage |
|---|
| 2.8 |
| 24.8 |
| 3 mm hex |
| Derailleur hanger | 4.5 | 39.8 | 4 mm hex |
|---|
| Stem @ steerer (Future Stem / common)Confirm printed stem / bar specs when they disagree. | 5 | 44.3 | 4 mm hex |
|---|
Straight from Specialized’s own chart, read Jul 24, 2026. Anything printed on the part itself always wins.
