Specialized

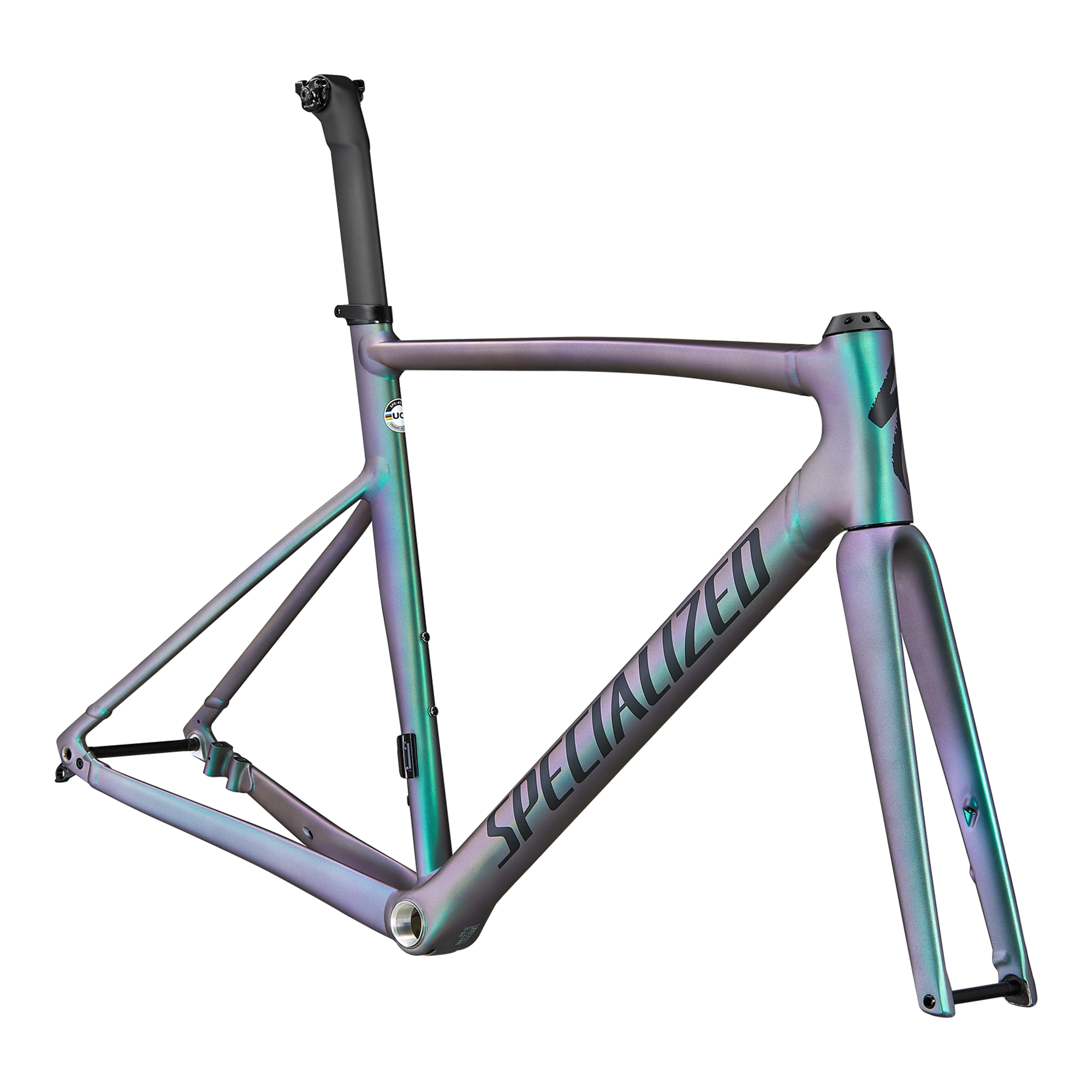

A road frameset in 6 sizes, from 49 to 61.
Frameset price, size 54
Not published
aggressive · neutral handling
From Specialized’s own numbers for the 54, not marketing copy.
aggressive · neutral handling
From your saved height and inseam, not a height range.
Every size, straight from Specialized’s chart. Blanks are numbers Specialized doesn’t publish; we don’t fill them in.
| Measurement | ||||||
|---|---|---|---|---|---|---|
| Stack (mm) | 508 | 520 | 537 | 558 | 584 | 605 |
| Reach (mm) | 378 | 383 | 387 | 398 | 405 | 411 |
| Stack / Reach | 1.34 | 1.36 | 1.39 | 1.40 | 1.44 | 1.47 |
| Head tube angle (°) | 71.8 | 72.5 | 73 | 73.5 | 73.5 | 74 |
| Seat tube angle (effective) (°) | 75.5 | 74 | 74 | 73.5 | 73.5 | 73 |
| Top tube (effective) (mm) | 509 | 532 | 541 | 563 | 578 | 596 |
| Chainstay (mm) | 410 | 410 | 410 | 410 | 410 | 410 |
| Wheelbase (mm) | 974 | 976 | 979 | 992 | 1006 | 1013 |
| Trail (mm) | 63 | 58 | 58 | 55 | 55 | 52 |
| Standover (mm) | 735 | 755 | 765 | 795 | 815 | 835 |
Specialized’s geometry chart, read Aug 3, 2026.
Specialized · seat-wedge frames — Typical values from Specialized road user manuals (e.g. Roubaix / Aethos / Tarmac). Printed wedge / axle markings win when present.
| Bolt | Torque(Nm) | Torque(in·lb) | Tool |
|---|---|---|---|
| Seatpost wedge / binderCarbon paste per manual; do not grease carbon seat tube. | 6.2 | 54.9 | 4 mm hex |
| Front thru-axle | 15 | 132.8 | 6 mm hex |
| Rear thru-axle | 15 | 132.8 | 6 mm hex |
| Bottle cage | 2.8 | 24.8 | 3 mm hex |
|---|
| Derailleur hanger | 4.5 | 39.8 | 4 mm hex |
|---|
| Stem @ steerer (Future Stem / common)Confirm printed stem / bar specs when they disagree. | 5 | 44.3 | 4 mm hex |
|---|
Straight from Specialized’s own chart, read Jul 24, 2026. Anything printed on the part itself always wins.
