Specialized

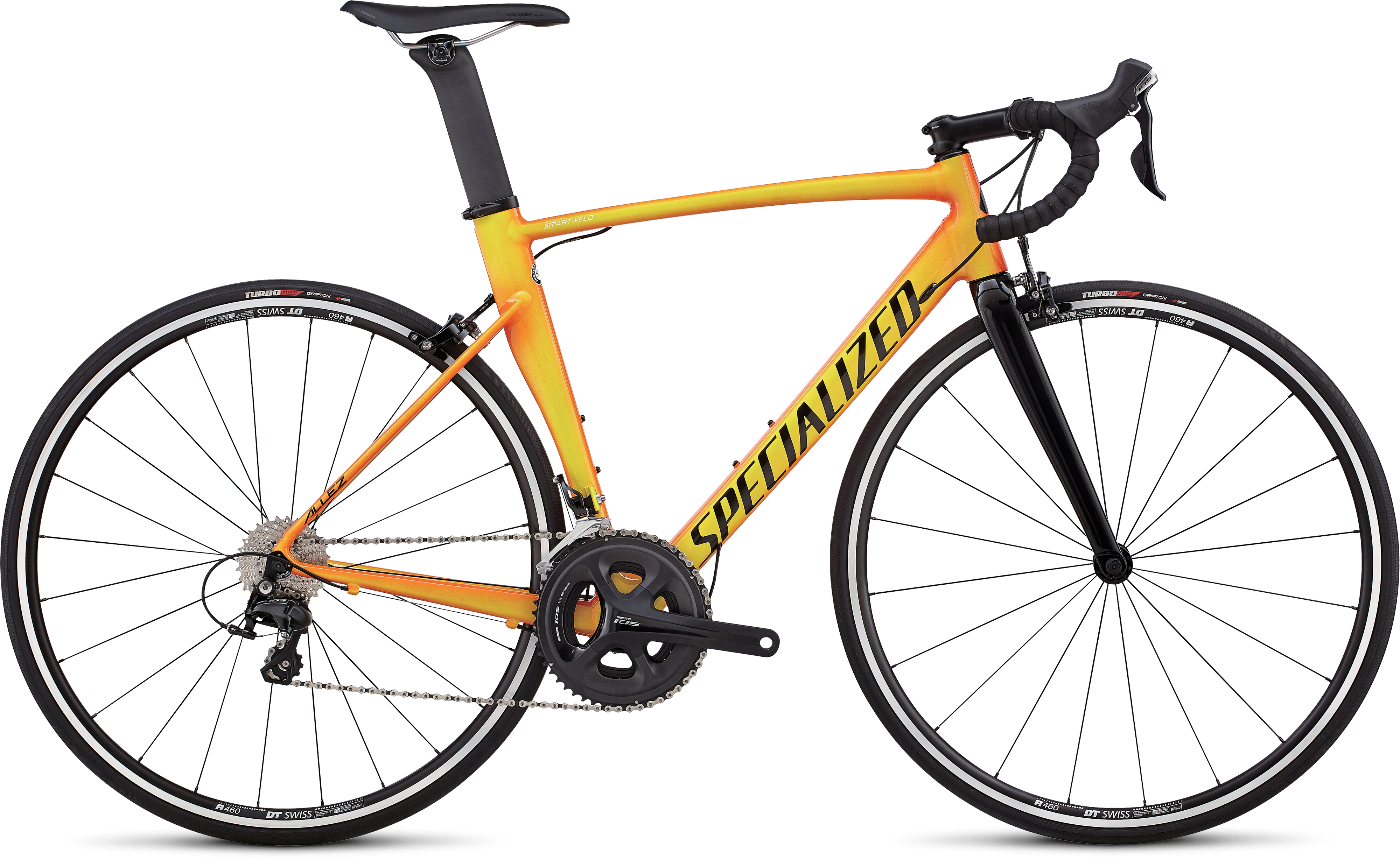

A road frameset in 6 sizes, from 49 to 61.
Frameset price, size 54
Not published
aggressive · neutral handling
From Specialized’s own numbers for the 54, not marketing copy.
aggressive · neutral handling
From your saved height and inseam, not a height range.
Every size, straight from Specialized’s chart. Blanks are numbers Specialized doesn’t publish; we don’t fill them in.
| Measurement | ||||||
|---|---|---|---|---|---|---|
| Stack (mm) | 502 | 514 | 533 | 554 | 583 | 604 |
| Reach (mm) | 375 | 380 | 385 | 395 | 400 | 405 |
| Stack / Reach | 1.34 | 1.35 | 1.38 | 1.40 | 1.46 | 1.49 |
| Head tube angle (°) | 72.3 | 73 | 73 | 73.5 | 73.5 | 74 |
| Seat tube angle (effective) (°) | 74 | 74 | 74 | 74 | 74 | 74 |
| Top tube (effective) (mm) | 519 | 527 | 538 | 554 | 567 | 578 |
| Chainstay (mm) | 405 | 405 | 405 | 405 | 405 | 407 |
| Wheelbase (mm) | 959 | 961 | 972 | 984 | 997 | 1005 |
| Trail (mm) | 63 | 58 | 58 | 55 | 55 | 52 |
| Standover (mm) | 732.3 | 745.8 | 765.5 | 784.3 | 808.3 | 833.8 |
Specialized’s geometry chart, read Aug 3, 2026.
Specialized · seat-wedge frames — Typical values from Specialized road user manuals (e.g. Roubaix / Aethos / Tarmac). Printed wedge / axle markings win when present.
| Bolt | Torque(Nm) | Torque(in·lb) | Tool |
|---|---|---|---|
| Seatpost wedge / binderCarbon paste per manual; do not grease carbon seat tube. | 6.2 | 54.9 | 4 mm hex |
| Front thru-axle | 15 | 132.8 | 6 mm hex |
| Rear thru-axle | 15 | 132.8 | 6 mm hex |
| Bottle cage |
|---|
| 2.8 |
| 24.8 |
| 3 mm hex |
| Derailleur hanger | 4.5 | 39.8 | 4 mm hex |
|---|
| Stem @ steerer (Future Stem / common)Confirm printed stem / bar specs when they disagree. | 5 | 44.3 | 4 mm hex |
|---|
Straight from Specialized’s own chart, read Jul 24, 2026. Anything printed on the part itself always wins.
