Seatpost wedge / binder
Carbon paste per manual; do not grease carbon seat tube.
6.2 Nm
54.9 in·lb
4 mm hex

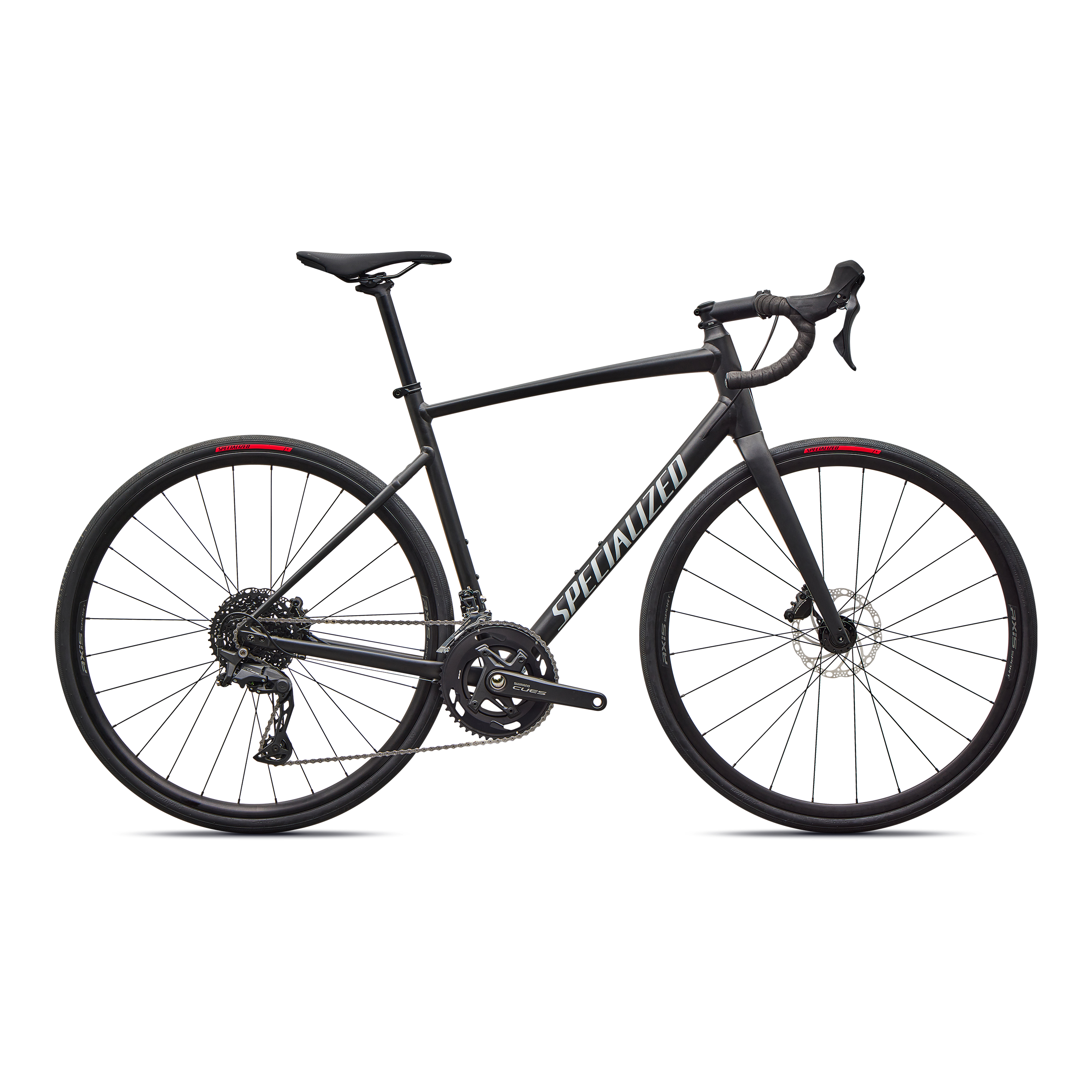

Allez2025
Specialized · Road · 7 sizes
Price not published
Kit weight not published
https://www.specialized.com/us/en/allez-shimano-cues/p/4221808
Frameset by size
Kit weight and list price per size. Gaps stay blank.
Retailer prices · size 54
Best in-stock in CAD. Affiliate links may earn a commission.
No retailer offers yet. Nightly feed jobs will populate prices.
Geometry by size
Tap + Compare under each size to queue several of this bike.
44 | 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|---|
| Stack | 519 mm | 536 mm | 552 mm | 569 mm | 590 mm | 610 mm | 643 mm |
| Reach | 356 mm | 359 mm | 364 mm | 370 mm | 378 mm | 386 mm | 392 mm |
| Stack / Reach | 1.46 | 1.49 | 1.52 | 1.54 | 1.56 | 1.58 | 1.64 |
| Head tube angle | 69.5° | 70.5° | 71° | 72° | 72.5° | 73° | 73° |
| Seat tube angle (effective) | 75.3° | 75.3° | 73.3° | 73.3° | 73.3° | 73.3° | 73.3° |
| Seat tube angle (actual) | — | — | — | — | — | — | — |
| Top tube (effective) | 493 mm | 500 mm | 530 mm | 541 mm | 556 mm | 569 mm | 586 mm |
| Head tube length | 110 mm | 125 mm | 140 mm | 155 mm | 175 mm | 195 mm | 230 mm |
| Seat tube length | 430 mm | 460 mm | 490 mm | 510 mm | 530 mm | 550 mm | 580 mm |
| Bottom bracket drop | 77 mm | 77 mm | 77 mm | 76 mm | 76 mm | 74.5 mm | 74.5 mm |
| Bottom bracket height | 273 mm | 273 mm | 273 mm | 274 mm | 274 mm | 275.5 mm | 275.5 mm |
| Chainstay | 420 mm | 420 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Front center | 576 mm | 577 mm | 583 mm | 585 mm | 594 mm | 603 mm | 619 mm |
| Wheelbase | 984 mm | 984 mm | 995 mm | 998 mm | 1008 mm | 1017 mm | 1033 mm |
| Fork rake (offset) | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Fork axle to crown | 378 mm | 378 mm | 378 mm | 378 mm | 378 mm | 378 mm | 378 mm |
| Trail | 74 mm | 71 mm | 64 mm | 61 mm | 58 mm | 58 mm | 81 mm |
| Standover | 715 mm | 739 mm | 761 mm | 781 mm | 801 mm | 821 mm | 852 mm |
| Pad / effective stack | — | — | — | — | — | — | — |
| Pad / effective reach | — | — | — | — | — | — | — |
Frame torque
Specialized · seat-wedge frames — Typical values from Specialized road user manuals (e.g. Roubaix / Aethos / Tarmac). Printed wedge / axle markings win when present.
Front thru-axle
15 Nm
132.8 in·lb
6 mm hex
Rear thru-axle
15 Nm
132.8 in·lb
6 mm hex
Bottle cage
2.8 Nm
24.8 in·lb
3 mm hex
Derailleur hanger
4.5 Nm
39.8 in·lb
4 mm hex
