Size M

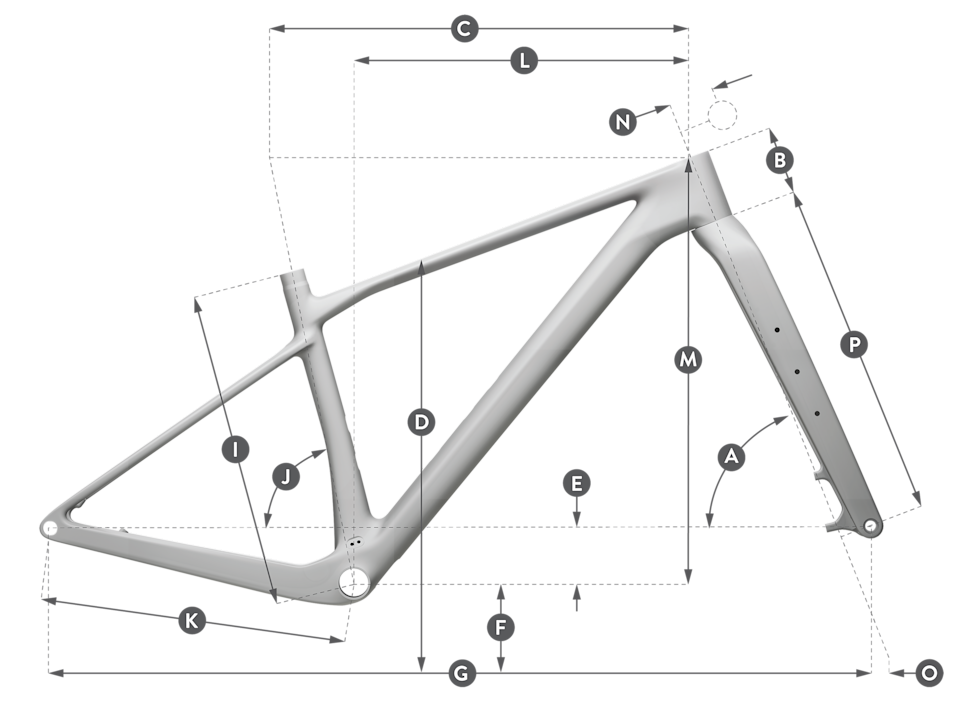

Hover a size to preview it on the drawing. Tap Compare under a column to line sizes up side by side.
S | M | L | XL | |
|---|---|---|---|---|
| Price (CAD) | $3,151 | $3,151 | $3,151 | $3,151 |
| Frame kit (g) | 1688 | 1688 | 1688 | 1688 |
| Stack | 600.3 mm | 604.9 mm | 618.9 mm | 628.1 mm |
| Reach | 418.5 mm | 442.3 mm | 463.6 mm | 491.2 mm |
| Stack / Reach | 1.43 | 1.37 | 1.33 | 1.28 |
| Head tube angle | 67.9° | 67.9° | 67.9° | 67.9° |
| Seat tube angle (effective) | 75.4° | 75.4° | 75.3° | 75.3° |
| Seat tube angle (actual) | — | — | — | — |
| Top tube (effective) | 575 mm | 600.2 mm | 626 mm | 656.5 mm |
| Head tube length | 90 mm | 95 mm | 110 mm | 120 mm |
| Seat tube length | — | — | — | — |
| Bottom bracket drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Bottom bracket height | 313 mm | 313 mm | 313 mm | 313 mm |
| Chainstay | 425 mm | 425 mm | 425 mm | 425 mm |
| Front center | 687.7 mm | 713.3 mm | 740.1 mm | 771.4 mm |
| Wheelbase | 1105.4 mm | 1131.1 mm | 1158 mm | 1189.4 mm |
| Fork rake (offset) | — | — | — | — |
| Fork axle to crown | 506 mm | 506 mm | 506 mm | 506 mm |
| Trail | 105 mm | 105 mm | 105 mm | 105 mm |
| Standover | 752 mm | 781 mm | 800 mm | 835.1 mm |
| Pad / effective stack | — | — | — | — |
| Pad / effective reach | — | — | — | — |
