Size M

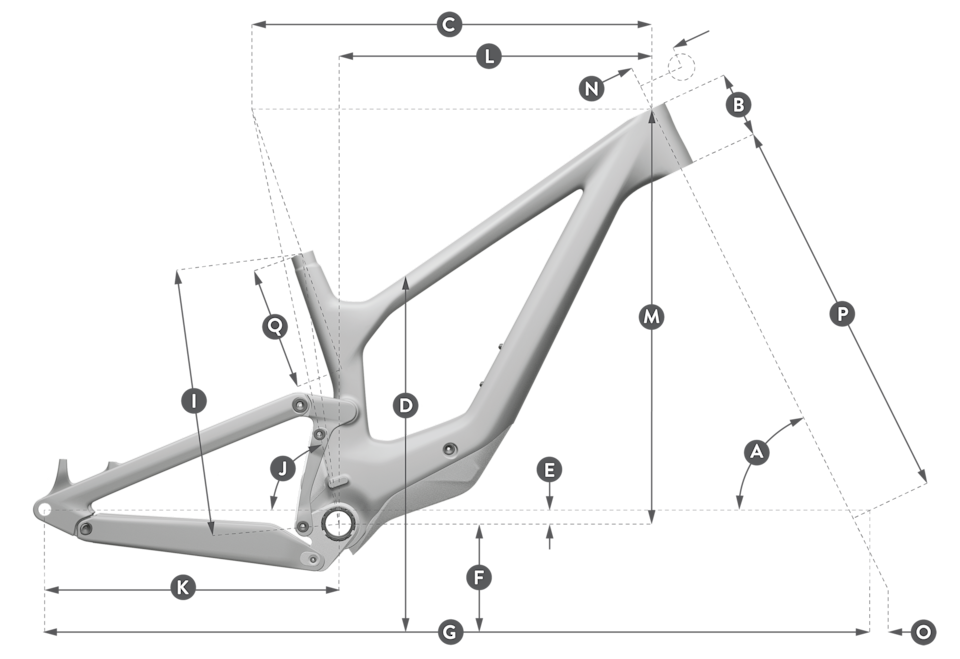

Hover a size to preview it on the drawing. Tap Compare under a column to line sizes up side by side.
S | M | L | XL | |
|---|---|---|---|---|
| Price (CAD) | $7,961 | $7,961 | $7,961 | $7,961 |
| Frame kit (g) | 3800 | 3800 | 3800 | 3800 |
| Stack | 614.8 mm | 619.3 mm | 632.8 mm | 641.7 mm |
| Reach | 428 mm | 458 mm | 483 mm | 508 mm |
| Stack / Reach | 1.44 | 1.35 | 1.31 | 1.26 |
| Head tube angle | 63.8° | 63.8° | 63.8° | 63.8° |
| Seat tube angle (effective) | 77° | 77.2° | 77.4° | 77.6° |
| Seat tube angle (actual) | — | — | — | — |
| Top tube (effective) | 569.9 mm | 598.7 mm | 624.4 mm | 649.1 mm |
| Head tube length | 95 mm | 100 mm | 115 mm | 125 mm |
| Seat tube length | 380 mm | 410 mm | 440 mm | 470 mm |
| Bottom bracket drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Bottom bracket height | 350 mm | 350 mm | 350 mm | 350 mm |
| Chainstay | 440 mm | 440 mm | 440 mm | 440 mm |
| Front center | 767.7 mm | 799.9 mm | 831.5 mm | 860.9 mm |
| Wheelbase | 1206.6 mm | 1238.8 mm | 1270.4 mm | 1299.8 mm |
| Fork rake (offset) | — | — | — | — |
| Fork axle to crown | 581 mm | 581 mm | 581 mm | 581 mm |
| Trail | 135.5 mm | 135.5 mm | 135.5 mm | 135.5 mm |
| Standover | 719.2 mm | 725.4 mm | 736.7 mm | 755.3 mm |
| Pad / effective stack | — | — | — | — |
| Pad / effective reach | — | — | — | — |
