Size M/54

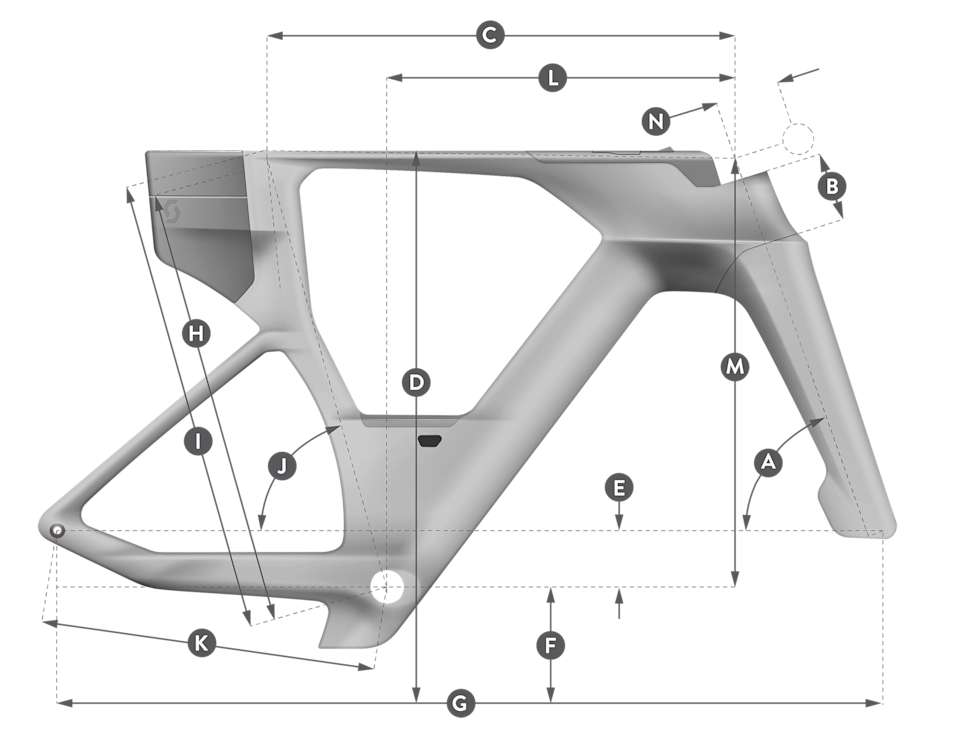

Hover a size to preview it on the drawing. Tap Compare under a column to line sizes up side by side.
XS/49 | S/52 | M/54 | L/56 | XL/58 | |
|---|---|---|---|---|---|
| Price (CAD) | $10,549 | $10,549 | $10,549 | $10,549 | $10,549 |
| Frame kit (g) | 2260 | 2260 | 2260 | 2260 | 2260 |
| Stack | 520 mm | 520 mm | 535 mm | 555 mm | 570 mm |
| Reach | 372.5 mm | 392.5 mm | 417.5 mm | 442.5 mm | 467.5 mm |
| Stack / Reach | 1.40 | 1.32 | 1.28 | 1.25 | 1.22 |
| Head tube angle | 72.5° | 72.5° | 72.5° | 72.5° | 72.5° |
| Seat tube angle (effective) | 75.2° | 75.2° | 75.2° | 75.2° | 75.2° |
| Seat tube angle (actual) | — | — | — | — | — |
| Top tube (effective) | 509.3 mm | 529.3 mm | 555.8 mm | 582.9 mm | 609.5 mm |
| Head tube length | — | — | — | — | — |
| Seat tube length | 503 mm | 503 mm | 552.4 mm | 572.3 mm | 587.5 mm |
| Bottom bracket drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Bottom bracket height | 261 mm | 261 mm | 261 mm | 261 mm | 261 mm |
| Chainstay | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Front center | 563.9 mm | 583.8 mm | 613.2 mm | 644.3 mm | 673.9 mm |
| Wheelbase | 962 mm | 982 mm | 1011.7 mm | 1043 mm | 1072.8 mm |
| Fork rake (offset) | — | — | — | — | — |
| Fork axle to crown | — | — | — | — | — |
| Trail | — | — | — | — | — |
| Standover | 746 mm | 746 mm | 795.8 mm | 815.8 mm | 831.1 mm |
| Pad / effective stack | — | — | — | — | — |
| Pad / effective reach | — | — | — | — | — |
