Size M/54

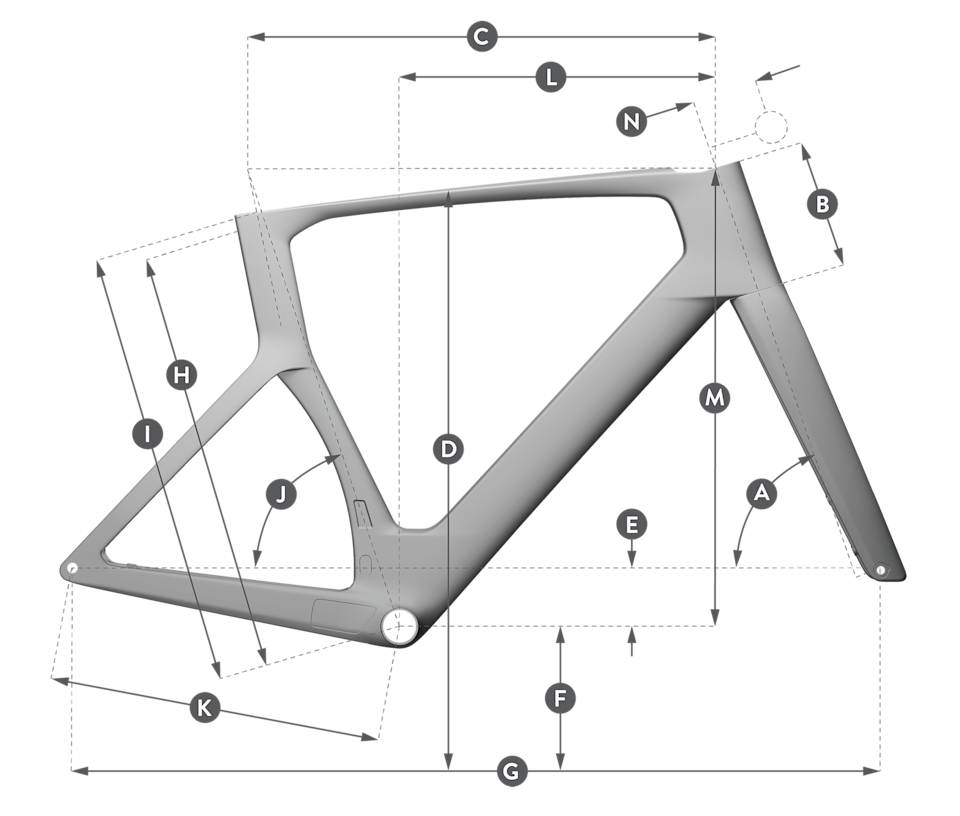

Hover a size to preview it on the drawing. Tap Compare under a column to line sizes up side by side.
XXS/47 | XS/49 | S/52 | M/54 | L/56 | XL/58 | XXL/61 | |
|---|---|---|---|---|---|---|---|
| Price (CAD) | $6,850 | $6,850 | $6,850 | $6,850 | $6,850 | $6,850 | $6,850 |
| Frame kit (g) | 1410 | 1410 | 1410 | 1410 | 1410 | 1410 | 1410 |
| Stack | 505 mm | 511 mm | 527 mm | 548 mm | 568 mm | 589 mm | 606 mm |
| Reach | 380 mm | 388 mm | 389 mm | 394.5 mm | 400 mm | 409 mm | — |
| Stack / Reach | 1.33 | 1.32 | 1.35 | 1.39 | 1.42 | 1.44 | — |
| Head tube angle | 70.5° | 71° | 72° | 72.5° | 73° | 73.3° | 73.3° |
| Seat tube angle (effective) | 74.5° | 74.5° | 74° | 73.6° | 73.3° | 73° | 72.5° |
| Seat tube angle (actual) | — | — | — | — | — | — | — |
| Top tube (effective) | 520 mm | 530 mm | 540 mm | 550 mm | 565 mm | 580 mm | 600 mm |
| Head tube length | 103 mm | 108 mm | 121 mm | 141 mm | 161 mm | 181 mm | 199 mm |
| Seat tube length | 451.8 mm | 481.9 mm | 502.4 mm | 522.6 mm | 542.4 mm | 559.8 mm | 572.4 mm |
| Bottom bracket drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Bottom bracket height | 274.5 mm | 274.5 mm | 274.5 mm | 274.5 mm | 274.5 mm | 274.5 mm | 274.5 mm |
| Chainstay | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Front center | 585.9 mm | 591.8 mm | 588.9 mm | 590.8 mm | 598 mm | 606.6 mm | 620.7 mm |
| Wheelbase | 987.7 mm | 993.7 mm | 990.7 mm | 992.6 mm | 999.9 mm | 1008.6 mm | 1022.7 mm |
| Fork rake (offset) | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Fork axle to crown | — | — | — | — | — | — | — |
| Trail | 73.5 mm | 70.3 mm | 64 mm | 60.8 mm | 57.7 mm | 55.8 mm | 55.8 mm |
| Standover | 746.4 mm | 759.6 mm | 779.6 mm | 801 mm | 820 mm | 838 mm | 853.3 mm |
| Pad / effective stack | — | — | — | — | — | — | — |
| Pad / effective reach | — | — | — | — | — | — | — |
