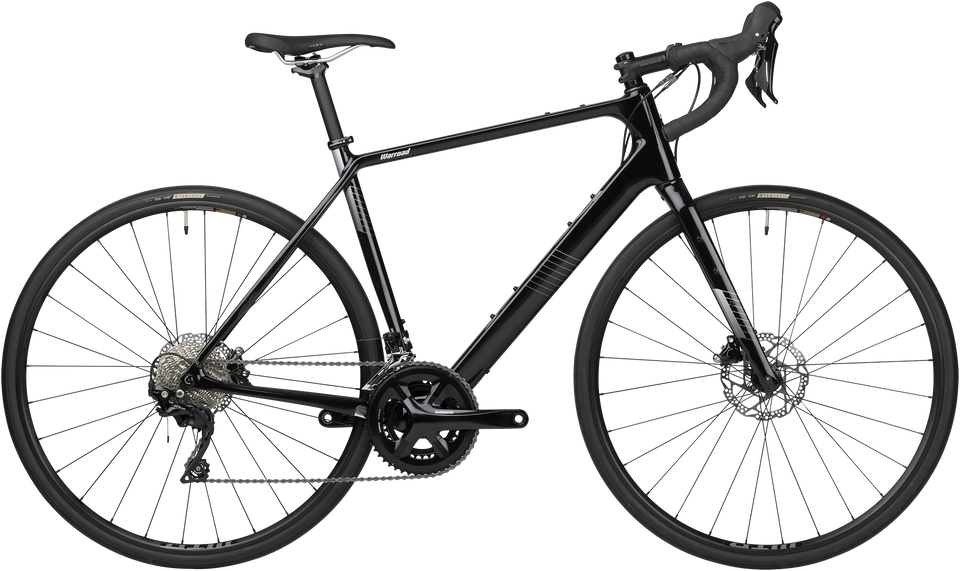

Salsa
A road frameset in 7 sizes, from 49 to 61.
Frameset price, size 56
Not published
upright · rear-biased · stable handling
From Salsa’s own numbers for the 56, not marketing copy.
upright · rear-biased · stable handling
From your saved height and inseam, not a height range.
Every size, straight from Salsa’s chart. Blanks are numbers Salsa doesn’t publish; we don’t fill them in.
| Measurement | |||||||
|---|---|---|---|---|---|---|---|
| Stack (mm) | 507.0 | 546.6 | 565.5 | 584.5 | 603.7 | 622.3 | 641.2 |
| Reach (mm) | 363.1 | 368.3 | 372.1 | 381.3 | 390.5 | 399.8 | 407.8 |
| Stack / Reach | 1.40 | 1.48 | 1.52 | 1.53 | 1.55 | 1.56 | 1.57 |
| Head tube angle (°) | 70.5 | 71 | 71 | 71 | 71 | 71 | 71 |
| Seat tube angle (effective) (°) | 75 | 74 | 73 | 73 | 73 | 73 | 72.5 |
| Top tube (effective) (mm) | 499 | 525 | 545 | 560 | 575 | 590 | 610 |
| Chainstay (mm) | 415 | 415 | 415 | 415 | 415 | 415 | 415 |
| Wheelbase (mm) | 980 | 994.3 | 1004.7 | 1020.4 | 1036.1 | 1051.9 | 1066.5 |
| Trail (mm) | Not published | Not published | Not published | Not published | Not published | Not published | Not published |
| Standover (mm) | 665.3 | 717.9 | 747.4 | 761.4 | 787.6 | 810.0 | 832.1 |
Salsa’s geometry chart, read Aug 3, 2026.
| Size | Frameset weight(g) | Price(CAD) |
|---|---|---|
| 49 | Not published | Not published |
| 52.5 | Not published | Not published |
| 54.5 | Not published | Not published |
| 56 | Not published | Not published |
| 57.5 |
|---|
| Not published |
| $9,589 |
| 59 | Not published | $9,589 |
|---|
| 61 | Not published | $9,589 |
|---|
Salsa hasn’t published frame bolt torques we can point to yet
