Cervélo

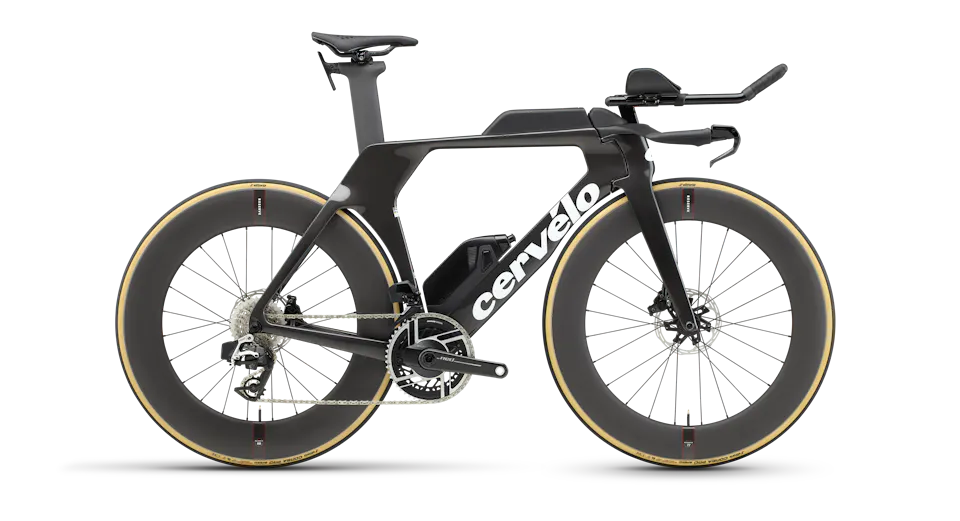

A time trial frameset in 6 sizes, from 48 to 61.
Frameset price, size 54
$8,905
aggressive · neutral handling
From Cervélo’s own numbers for the 54, not marketing copy.
aggressive · neutral handling
From your saved height and inseam, not a height range.
Every size, straight from Cervélo’s chart. Blanks are numbers Cervélo doesn’t publish; we don’t fill them in.
| Measurement | ||||||
|---|---|---|---|---|---|---|
| Stack (mm) | 461 | 482 | 498 | 516 | 535 | 556 |
| Reach (mm) | 389 | 406 | 420 | 433 | 446 | 455 |
| Stack / Reach | 1.19 | 1.19 | 1.19 | 1.19 | 1.20 | 1.22 |
| Head tube angle (°) | 71 | 72.5 | 72.5 | 72.5 | 72.5 | 72.4 |
| Seat tube angle (effective) (°) | Not published | Not published | Not published | Not published | Not published | Not published |
| Top tube (effective) (mm) | 513 | 535 | 553 | 571 | 589 | 604 |
| Chainstay (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
| Wheelbase (mm) | 975 | 976 | 995 | 1015 | 1033 | 1048 |
| Trail (mm) | Not published | Not published | Not published | Not published | Not published | Not published |
| Standover (mm) | 739 | 759 | 775 | 792 | 812 | 906 |
Cervélo’s geometry chart, read Jul 21, 2026.
| Size | Frameset weight(g) | Price(CAD) |
|---|---|---|
| 48 | 3850 | $8,905 |
| 51 | 3850 | $8,905 |
| 54 | 3850 | $8,905 |
| 56 | 3850 | $8,905 |
| 58 | 3850 | $8,905 |
| 61 | 3850 | $8,905 |
Cervélo · road / aero — Values match Cervélo retailer assembly manuals (S5 / Soloist family). Apply carbon assembly compound at the seatpost.
| Bolt | Torque(Nm) | Torque(in·lb) | Tool |
|---|---|---|---|
| Seatpost wedge clampRounded-front wedge; grease wedge sliding surfaces. | 8 | 70.8 | Hex |
| Cervélo aero thru-axle | 12–15 | 106.2–132.8 | 6 mm hex / removable handle |
| Cervélo aero thru-axle | 12–15 | 106.2–132.8 | 6 mm hex / removable handle |
| Bottle cage | 2–3 | 17.7–26.6 | 4 mm hex |
| UDH / Derailleur Hanger v2Hanger fixing screw; left-hand thread on some Cervélo hangers. | 25 | 221.3 | Hex |
Straight from Cervélo’s own chart, read Jul 24, 2026. Anything printed on the part itself always wins.
