Canyon

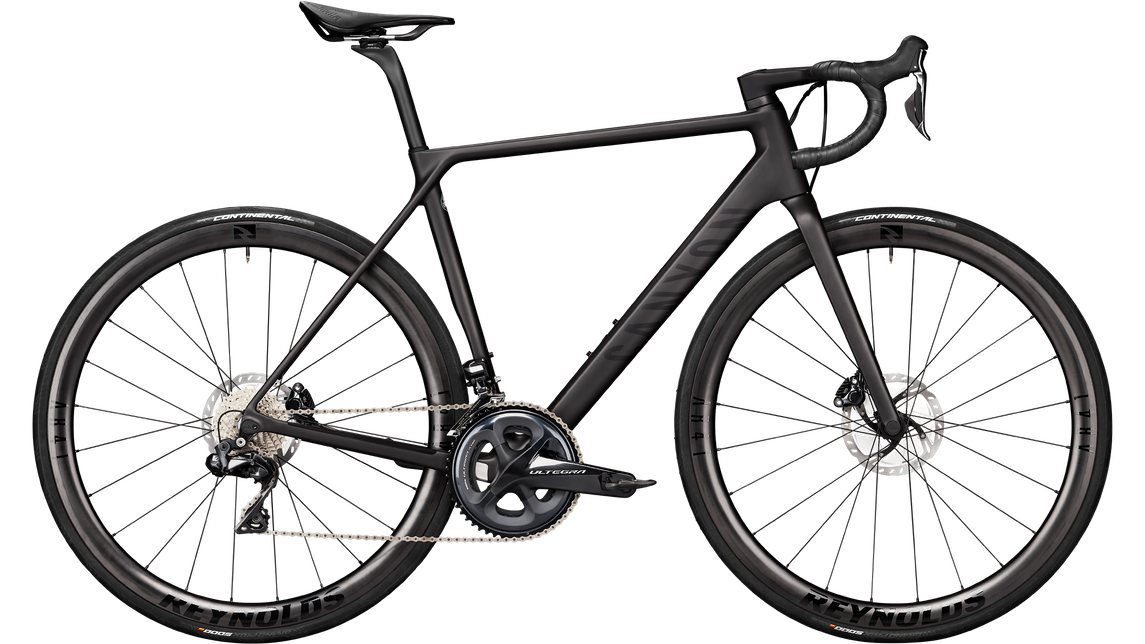

A road frameset in 7 sizes, from 2XS to 2XL.
Frameset price, size M
Not published
sport · neutral handling
From Canyon’s own numbers for the M, not marketing copy.
sport · neutral handling
From your saved height and inseam, not a height range.
Every size, straight from Canyon’s chart. Blanks are numbers Canyon doesn’t publish; we don’t fill them in.
| Measurement | |||||||
|---|---|---|---|---|---|---|---|
| Stack (mm) | 500 | 522 | 546 | 567 | 592 | 613 | 631 |
| Reach (mm) | 368 | 378 | 385 | 391 | 399 | 418 | 428 |
| Stack / Reach | 1.36 | 1.38 | 1.42 | 1.45 | 1.48 | 1.47 | 1.47 |
| Head tube angle (°) | 69.6 | 71 | 72.3 | 73.3 | 73.3 | 73.5 | 73.8 |
| Seat tube angle (effective) (°) | 73.9 | 73.8 | 73.8 | 73.8 | 73.8 | 73.8 | 73.8 |
| Top tube (effective) (mm) | 513 | 529 | 543 | 556 | 571 | 596 | 612 |
| Chainstay (mm) | 415 | 415 | 415 | 415 | 415 | 415 | 415 |
| Wheelbase (mm) | 983 | 988 | 993 | 996 | 1011 | 1034 | 1046 |
| Trail (mm) | Not published | Not published | Not published | Not published | Not published | Not published | Not published |
| Standover (mm) | 720 | 748 | 775 | 801 | 828 | 851 | 874 |
Canyon’s geometry chart, read Aug 3, 2026. The chart as a PDF.
Canyon · road / gravel — Canyon road manual frame values. Seatpost clamp torque is often printed on the clamp (commonly ~5 Nm on Aeroad-style wedges) — printed value wins.
| Bolt | Torque(Nm) | Torque(in·lb) | Tool |
|---|---|---|---|
| Seatpost clamp (typical)Approach max in 0.5 Nm steps; many Canyon clamps max ~5–6 Nm. | 4–6 | 35.4–53.1 | Canyon torque wrench / hex |
| Thru-axle (RWS / road)Manual: tighten to at least 15 Nm or as tight as possible by hand. |
| 15 |
| 132.8 |
| RWS lever / hex |
| Thru-axle (RWS / road) | 15 | 132.8 | RWS lever / hex |
|---|
| Bottle cage | 2 | 17.7 | 4 mm hex |
|---|
| Replaceable derailleur hanger | 1.5 | 13.3 | Hex |
|---|
| Stem on carbon steerer (max)M5 stems often 4.5–5.5 Nm; carbon steerer max 6 Nm unless marked lower. | 4.5–6 | 39.8–53.1 | 4 / 5 mm hex |
|---|
Straight from Canyon’s own chart, read Jul 24, 2026. Anything printed on the part itself always wins.
