Canyon

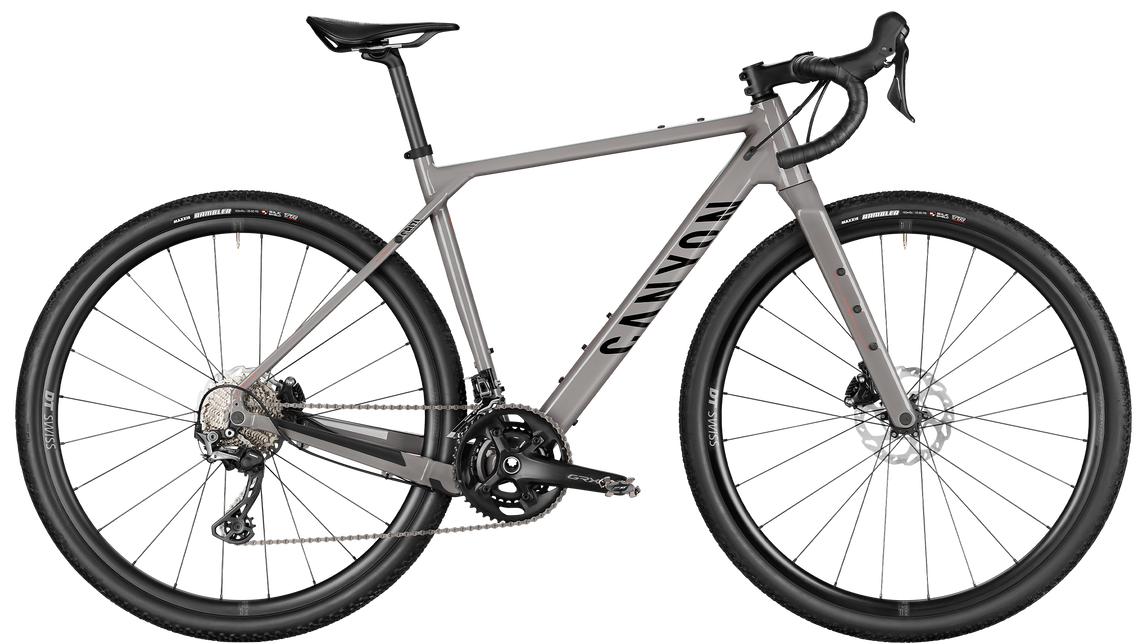

A gravel frameset in 8 sizes, from 3XS to 2XL.
Frameset price, size S
Not published
aggressive · stable handling
From Canyon’s own numbers for the S, not marketing copy.
aggressive · stable handling
From your saved height and inseam, not a height range.
Every size, straight from Canyon’s chart. Blanks are numbers Canyon doesn’t publish; we don’t fill them in.
| Measurement | ||||||||
|---|---|---|---|---|---|---|---|---|
| Stack (mm) | 512 | 522 | 537 | 556 | 579 | 605 | 626 | 644 |
| Reach (mm) | 372 | 377 | 382 | 397 | 402 | 409 | 427 | 436 |
| Stack / Reach | 1.38 | 1.39 | 1.41 | 1.40 | 1.44 | 1.48 | 1.47 | 1.48 |
| Head tube angle (°) | 69 | 69.8 | 70.5 | 70.3 | 71.5 | 72 | 72.5 | 72.5 |
| Seat tube angle (effective) (°) | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Top tube (effective) (mm) | 524 | 532 | 541 | 562 | 574 | 588 | 612 | 627 |
| Chainstay (mm) | 420 | 420 | 420 | 435 | 435 | 435 | 435 | 435 |
| Wheelbase (mm) | 1007 | 1009 | 1012 | 1044 | 1045 | 1055 | 1074 | 1089 |
| Trail (mm) | Not published | Not published | Not published | Not published | Not published | Not published | Not published | Not published |
| Standover (mm) | 709 | 730 | 752 | 780 | 807 | 835 | 860 | 884 |
Canyon’s geometry chart, read Aug 3, 2026. The chart as a PDF.
Canyon · road / gravel — Canyon road manual frame values. Seatpost clamp torque is often printed on the clamp (commonly ~5 Nm on Aeroad-style wedges) — printed value wins.
| Bolt | Torque(Nm) | Torque(in·lb) | Tool |
|---|---|---|---|
| Seatpost clamp (typical)Approach max in 0.5 Nm steps; many Canyon clamps max ~5–6 Nm. | 4–6 | 35.4–53.1 | Canyon torque wrench / hex |
| Thru-axle (RWS / road)Manual: tighten to at least 15 Nm or as tight as possible by hand. |
| 15 |
| 132.8 |
| RWS lever / hex |
| Thru-axle (RWS / road) | 15 | 132.8 | RWS lever / hex |
|---|
| Bottle cage | 2 | 17.7 | 4 mm hex |
|---|
| Replaceable derailleur hanger | 1.5 | 13.3 | Hex |
|---|
| Stem on carbon steerer (max)M5 stems often 4.5–5.5 Nm; carbon steerer max 6 Nm unless marked lower. | 4.5–6 | 39.8–53.1 | 4 / 5 mm hex |
|---|
Straight from Canyon’s own chart, read Jul 24, 2026. Anything printed on the part itself always wins.
Shopping links may earn us a commission at no extra cost to you. The geometry always comes from the maker, never from a shop.
