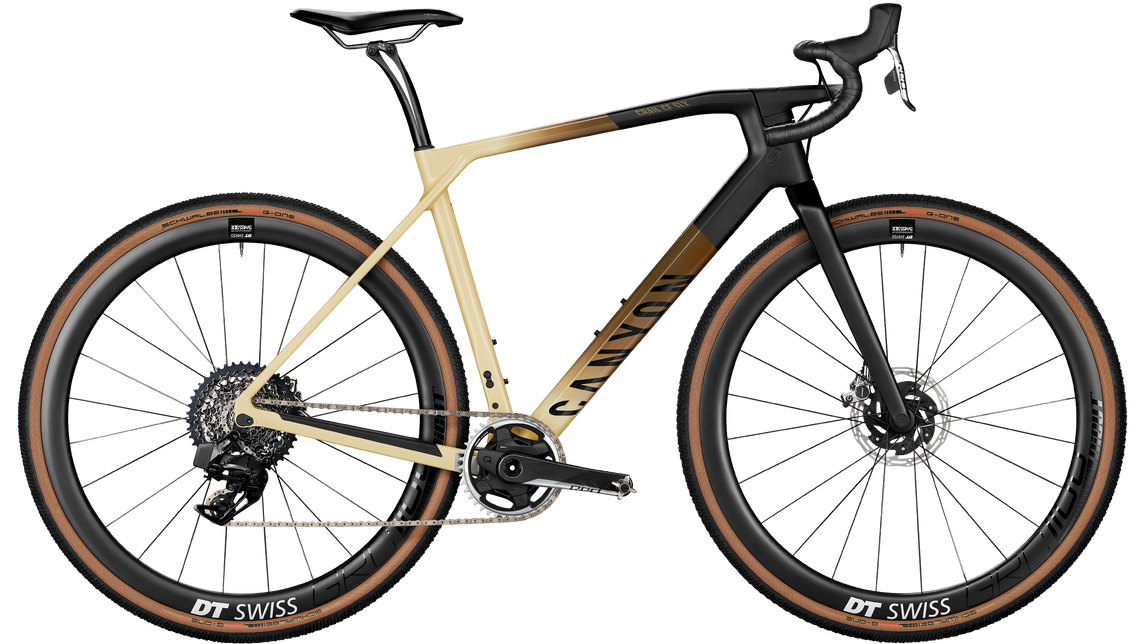

A gravel frameset in 7 sizes, from 2XS to 2XL.
Frameset price, size M
Not published
aggressive · rear-biased · snappy handling
From Canyon’s own numbers for the M, not marketing copy.
aggressive · rear-biased · snappy handling
From your saved height and inseam, not a height range.
Every size, straight from Canyon’s chart. Blanks are numbers Canyon doesn’t publish; we don’t fill them in.
| Measurement | |||||||
|---|---|---|---|---|---|---|---|
| Stack (mm) | 470 | 490 | 513 | 536 | 563 | 584 | 604 |
| Reach (mm) | 384 | 388 | 405 | 421 | 423 | 441 | 466 |
| Stack / Reach | 1.22 | 1.26 | 1.27 | 1.27 | 1.33 | 1.32 | 1.30 |
| Head tube angle (°) | 70.3 | 71.3 | 72.5 | 72.5 | 72.5 | 72.8 | 72.8 |
| Seat tube angle (effective) (°) | 72.7 | 72.7 | 72.8 | 72.8 | 72.8 | 72.8 | 72.9 |
| Top tube (effective) (mm) | 513 | 523 | 547 | 569 | 580 | 604 | 615 |
| Chainstay (mm) | 415 | 415 | 425 | 425 | 425 | 425 | 425 |
| Wheelbase (mm) | 988 | 990 | 1020 | 1029 | 1040 | 1063 | 1073 |
| Trail (mm) | Not published | Not published | Not published | Not published | Not published | Not published | Not published |
| Standover (mm) | 753 | 778 | 834 | 834 | 860 | 888 | 912 |
Canyon’s geometry chart, read Aug 3, 2026. The chart as a PDF.
Canyon · road / gravel — Canyon road manual frame values. Seatpost clamp torque is often printed on the clamp (commonly ~5 Nm on Aeroad-style wedges) — printed value wins.
| Bolt | Torque(Nm) | Torque(in·lb) | Tool |
|---|---|---|---|
| Seatpost clamp (typical)Approach max in 0.5 Nm steps; many Canyon clamps max ~5–6 Nm. | 4–6 | 35.4–53.1 | Canyon torque wrench / hex |
| Thru-axle (RWS / road)Manual: tighten to at least 15 Nm or as tight as possible by hand. |
| 15 |
| 132.8 |
| RWS lever / hex |
| Thru-axle (RWS / road) | 15 | 132.8 | RWS lever / hex |
|---|
| Bottle cage | 2 | 17.7 | 4 mm hex |
|---|
| Replaceable derailleur hanger | 1.5 | 13.3 | Hex |
|---|
| Stem on carbon steerer (max)M5 stems often 4.5–5.5 Nm; carbon steerer max 6 Nm unless marked lower. | 4.5–6 | 39.8–53.1 | 4 / 5 mm hex |
|---|
Straight from Canyon’s own chart, read Jul 24, 2026. Anything printed on the part itself always wins.
